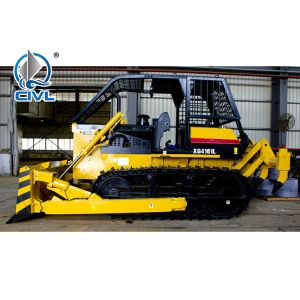

Fill Grade Shantui Bulldozer, Operating Weight 17.7t, Engine
Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Bulldozer is a kind of earthwork machinery which can excavate,
transport and dump rock and soil. It is widely used in open pit
mine. For example, it is used to build waste dump, level automobile
waste dump, pile scattered ore rock, level working flat plate and
construction site. It is not only used for auxiliary work, but also
for main mining work. For example, the stripping and mining of
placer, the traction and boost of scraper and plough, and the
cooperation with other earth moving machinery to reduce the height
of stripping bench when there is no transportation mining method.
| ITEM | UNIT | SD16R |
|---|
| L×W×H (Ripper not included) | mm | 5262×4150×3074 |
| Operating weight (Ripper not included) | t | 17.7 |
| Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
| Rated power | kW/rpm | 120/1850 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade |
| Blade width | mm | 4150×1578 |
| Dozing capacity | m3 | 3.8 |
| Ma× drop below ground of blade | mm | 485 |
| Lift height of blade | mm | 1005 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | - |
| Lifting height of ripper | mm | - |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 42 |
| Width of track shoe | mm | 1100 |
| Track gauge | mm | 2300 |
| Ground length and ground pressure | mm/MPa | 2935-0.043 |
| Pitch | mm | 203.2 |
| Forward speed | km/h | 0–3.29 |
| 0–5.82 |
| 0–9.63 |
| Reverse speed | km/h | 0–4.28 |
| 0–7.59 |
