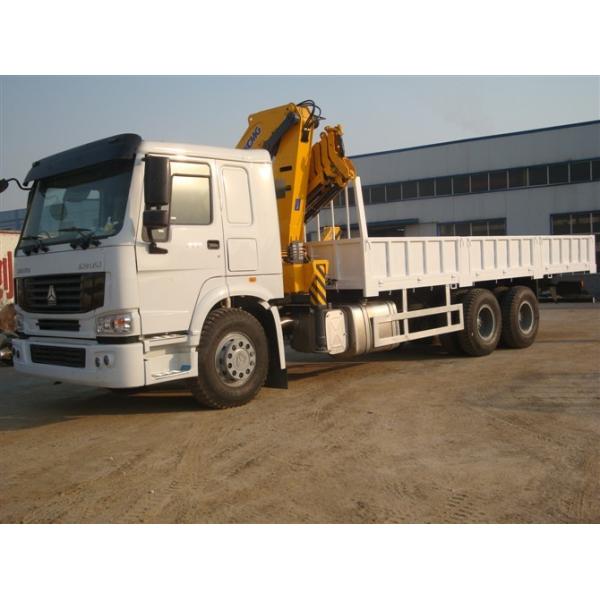

12 tons Lorry Mounted Crane 6x4 straight arm 17m with warranty
Specification:
| Overall dimensions | mm | 9880X2496X3800 |
| Curb weight | kg | 12830 |
| Wheel base | mm | 4325+1350 |
| Van dimensions | mm | 6240X2300X600 |
| Front/rear overhang | mm | 1500/2680 |
| Approach/departure angle | ° | 16/12 |
| Displacement/hp | ml/hp | 9726/ 336 |
| Max speed | km/h | 80 |
| Traction system | 6×4 | Transmission | 10 Forward |
| Number of axles | 3 | Electric system | 24v |
Crane Parameter | Crane type | SQ12SA3 | Maximum working radius |
| Maximum lifting height | 17m | Max. Lifting Load |
| Full hydraulic,turning angle 360° |
| 8 tons, 10 tons, 12 tons, straight arm type, folding arm type is optional |
| Production cycle | 25 to 35 days |
| Warranty | 12 month from the date of supply |
Description:
We have customers from worldwide countries and areas, such as
Kenya, Ethiopia, Libya, Turkmenistan,
Kazakhstan, South Africa, Syria, Middle-east, African,
South-African, Australian and so on. We serve
the best service for our customers. Welcome all friends come to
visit our factory. The series products of
our trucks are ideal versions instead of imported ones. With
outstanding performance and high quality,
they are widely used in industries and sectors, such as national
defense, aviation, postal service, railways,highways, harbors,
petroleum, chemicals, water and electricity, forests, fire
fighting, banks and peace
keeping forces. The machine is designed with both hand and
automatic controls system with the
specialties of large volume, high efficiency, better sealing and
easy for service so that they are widely
used in municipal refuse handling, commercial and industrial
garbage operations.
Applications:
A crane truck is also known as a truck with loading crane, or a
truck-mounted crane. This product is a kind of equipment which
depends on the hydraulic lifting and retractable system to lift and
turn the cargos. It is generally mounted to the cargo truck.
Competitive Advantage:
1. Attached parts and tools put into standard export box.
2. Truck mounted crane will be cleaned and covered with wax before
delivery.
3. Truck mounted crane will be covered by waterproof cloth at the
departure port.
4. Roll-on/Roll-off ship or bulk cargo ship is optional according
to the customers’ requirements.
5. Some small truck mounted crane can be put into container
according to its overall dimensions.
