New Lifting Capacity 25T/25000KG All Terrain Cross-Country Vehicle
Crane
Features
RT25 is equipped with the two-axle loading chassis, which has two
types of drive modes, four types of steering modes and
backward-forward driving functions. It also has four sections of
dodecagon main booms, abdomen-placed auxiliary boom, H-type
outrigger, fixed balance counterweight, as well as three working
modes, including: hoisting with the support of outriggers, hoisting
with the support of tire and hoisting when driving. It is widely
used in oil field, mine, road and bridge construction, warehousing
base and other construction sites.
Product Highlights:
Strong Power of Hoisting, Wide Range of Work
It has 31m main booms, 13m auxiliary booms, with the longest main
booms and the highest comprehensive hoisting performance in the
product of the same tonner.
Maneuvering and Flexible, Quick and Efficient
The max speed reaches 50km/h and the max gradeability is 55% and
the min. turning radius is 5m. All these three factors make it
flexible.
Self-localization and self-locked abdomen-placed auxiliary booms
make it needs no auxiliary operator and no equipment, and can
quickly retract, and efficiently work.
Safe and Reliable, No Worry to Handle
The product is equipped with lifting protection control system in
of overload, over-retracting and over-stretching as well as
exclusive technology in this field like rear axle-wheel automatic
return-control system and safety-driving automatic protection
system. All these elevate its safety performance largely;
The product is equipped with top features in this field,
professional matching upgrading and systematic evaluation test. And
it has passed test like driving 11,000km and 10,000 times hanging.
Both ensure its reliability.
Economic and Environmental Protection, with Cost Saving
The product is equipped with optical matching power transmission
system and torque converter with lockout function, which decrease
the oil consumption over 20% at high speed.
The one-way stabilized current control of parallel hydraulic
pressure system reduces the loss of flow; the gravity drop luffing
system needs no extra power and save the oil consumption.
Comfortable to Handle, Convenient to Operate
The product is equipped with full hydro-steering control system and
automatic-manual gear box, which make it easy to handle. And the
compounded suspension of leaf spring and hydraulic oil tank, and
the self-recognition phased control of rotary cushion technology
make the operation stability and comfortable;
The product is equipped with humanized climb ladder, maintenance
access and control layout. And it is equipped with professional
man-machine engineering simulation analysis; exquisite man-machine
interface and stand-alone fault diagnose function. It is
comfortable to handle and convenient to operate.
Specifications
Engine: Cummins
Rated power: 142kw
Max lifting capacity: 25 ton
Full-extend boom length: 30.8m
Full-extend boom + jib length: 37.7m
| Project | Unit | Parameter |
| Measurements Parameters | | |
| Length of Entire Vehicle | (mm) | 11703 |
| Width of Entire Vehicle | (mm) | 2700 |
| Height of Entire Vehicle | (mm) | 3385 |
| Wheel Base | (mm) | 3700 |
| Wheel Track | (mm) | 2200 |
| Weight Parameters | | |
| Gross Vehicle Weight When Driving | (kg) | 26365 |
| Axle Load | (kg) | (Front Axle)12715/(Rear Axle)13650 |
| Kinetic Paremeter | | |
| Engine Type | - | QSB6.7-C190 |
| Engine Rated Power(kw/ | (kw/(r/min)) | 142 |
| Engine Max Torque(N.m/ | (N.m/(r/min)) | 931 |
| Driving Parameters | | |
| Driving | | |
| Max Travel Speed | (km/h) | 50 |
| Min Travel Speed | (km/h) | 2 |
| Swerve | | |
| Min Turning Radius | (m) | 10 |
| Head Min. Turning Diameter | (m) | - |
| Max Gradeability | (%) | 55 |
| Min. Ground Clearance of Machine | (mm) | 345 |
| Approach Angle | (°) | 22 |
| Departure Angle | (°) | 19 |
| Braking Distance | (m) | 9 |
| Fuel Consumption per 100kms | (L) | - |
| Major Performance Parameters | | |
| Max. Rated Lifting Capacity | (t) | 25 |
| Min. Rated Range | (m) | 3 |
| Max. Load Moment of Basic Jib | (kN·m) | 989.8 |
| Radius of Gyration of Turntable Tail | (mm) | 3698 |
| Outrigger | | |
| Longitudinal | (m) | 6.3 |
| Horizontal | (m) | 6.3/4.8 |
| Max. Lifting Height | | |
| Basic Boom | (m) | 9.1 |
| Longest Main Boom | (m) | 30.8 |
| Longest Main Boom + Auxiliary Boom | (m) | 41.4 |
| Boom Length of Crane | | |
| Basic Boom | (m) | 9.7 |
| Longest Main Boom | (m) | 31 |
| Longest Main Boom + Auxiliary Boom | - | 44 |
| Longest Main Boom + Auxiliary Boom + Extension | - | - |
| Working Speed | | |
| Max. Slewing Speed | (r/min) | 2 |
| Lifting Speed | | |
| Main Hoisting Mechanism | (m/min) | 130(Unload) |
| Auxiliary Hoisting Mechanism | (m/min) | 130(Unload) |
| Stretching and Retracting Time of Crane Boom | | |
| Full Stretching | (s) | 70 |
| Full Retracting | - | - |
| Luffing Time | | |
| Full Travel Boom Lifting | (s) | 55 |
| Full Travel Boom Lowering | (s) | - |
| Outrigger Extension and Retract | | |
| Horizontal | | |
| Stretching at the Same Time | (s) | 35 |
| Retracting at the Same Time | (s) | 30 |
| Vertical | | |
| Stretching at the Same Time | - | 45 |
| Retracting at the Same Time | - | 35 |

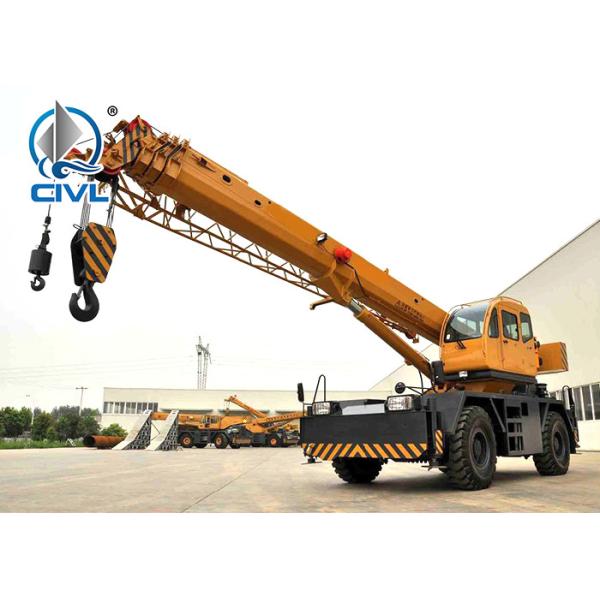

Photos
