Dump Truck Description:
We possesses the most advanced domestic designs of special
vehicles, and we can design and produce vehicles according to
different requirements of customers. Most of our products and
technology are national scientific and technological projects,
filling the blank of domestic products, being substituted for
import and having obtained national patents and awards of national
scientific and technological progress. Especially the design and
production of our wrecker has reached internationally advanced
level.
Dump Truck Applications:
It is suitable for in normal roads and tough roads, to transport
and unload transport, stone, ore, and others loose materials.
Dump Truck Specifications:
Products Technical Specification |
Type | 6*4 Dump truck |
Brand | Sinotruk-HOWO |
Cab | HW76, Half row,With A/C,sleeper |
Vehicle Description |
Overall dimensions(mm) | 8580*2495*3400 |
G.V.W (kg) | 25000 |
Curb weight(vehicle) (kg) | 8060 |
Loading capacity (kg) | 25000-50000 |
Max speed (Km/h) | 85 |
Engine |
Engine model | WD615.69 |
Maximum power | 247kw / 336hp |
Displacement (lit) | 9.726 |
Engine Manufacturer | China Heavy Duty Truck Group Co., Ltd. |
Chassis Description |
Chassis Model | ZZ3257N3847A |
Wheel base | 3825+1350 |
F/R track base(mm) | 2022/1830 |
F/R overhang(mm) | 1500/900 |
Approach/Departure angle(°) | 19/50 |
Spring plate | 9/12 |
Front axle / rear axle | HF9/HC16 |
Type of fuel | Diesel |
Transmission | HW15710,10-Speed |
Brake System | Air braking |
Operation control system | Power steering |
Electric system | 24V |
Tire specification | 12.00R 20 |
Up-parts Description |
Van dimensions(mm) | 5600/5800*2300*1500/1800 |
Van description | Equipped with material of carbon steel, side 6mm thickness;bottom 8mm thickness Equipped with middle hydraulic ram, single door. |
Optional Configuration |
Cargo body thickness,side door,and HYVA brands hydraulic
cylinder,etc. |

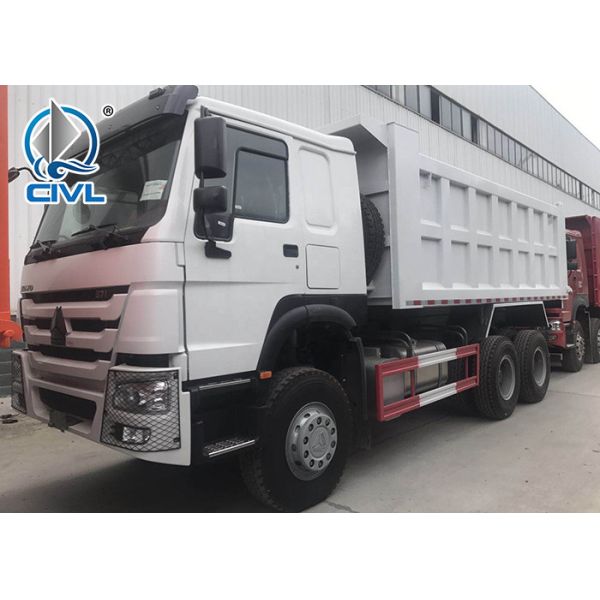

Dump Truck Photos:
Competitive Advantage:
1 Rich Experience in sale of the Sinotruk’s heavy equipment &
truck.
2 Expert in kinds of heavy trucks and spare parts.
3 Personalized customization to meet your working requirements.
4 High quality of Original parts & OEM services.
5 Engineers and experts on call for pre/after sale support.
Tipper truck, tipper, dumper, dumper truck, side tipper truck, side
dump truck, front lift tipper truck, side lift dumper,6 tires
tipper, 10 tires tipper, 10T
