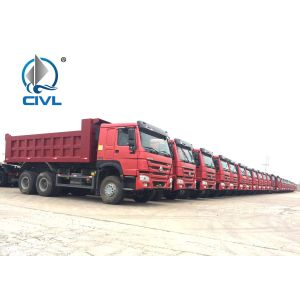

HOWO A7 Heavy Duty Dump Truck 336HP 6x4 EURO II 190 Horse Power
CIVL GROUP is committed to international trade and cooperation.
We are a package of solution providers for full sets of vehicles,
construction machineries and auxiliary facilities.
With the help of the materials,equipments and vehicles needed for
infrastructure,logistics and transportation as well as people's
livelihood, We provide a complete set of services in
pre-sale,in-sale and after-sale to our customers.
Our products cover from transportation vehicles, special vehicles,
passenger cars, pavement machinery, road maintenance equipment,
port special tools, concrete production lines, etc. to the
related-auxiliaries including various board houses, tents, steel
structures, building materials, mobile fuel stations, etc.
Our Vision:We hope to enable customers around the world to create more value
and wealth through our quality products and professional solutions.
We adhere to the business philosophy of multi-win strategies and
integrity sharing.
We value the friendship and partnership!
Application:
It is suitable for in harsh environments, unloading and transport
ore and others.
Specifications:
1. howo a7 6X4 380 hp dumper trucks
2. MAN technologhy
3. large loading capacity
4. large power
wo a7 6X4 380 hp dumper trucks
Truck Model No: | ZZ3257M3247N1 A7E/300/K32/6*4WA |
Gross weight kg | 25000 |
curb weight kg | 11950 |
Rated load quality kg | 12920 |
Max. Speed (Km/h) | 78 |
Cab | A7-W low floor board long cab with one sleeper, with air
conditioner |
Engine
| Make : SINOTRUK Diesel: 4-stroke direct injection diesel engine Engine model : WD615.69, EURII emission , new design on intake & exhaust system, power and fuel
economy get improved 6-cylinder in-line with water cooling, turbo-charging and
intercooling Max. output : 336Hp (221 Kw ) at 2200 rpm Displacement : 9.726L |
Transmission | HW15710 ,10gear transmission SINOTRUK 10 forward & 2 Ratio:14.28 Torque: 1900Nm |
clutch | SINOTRUK Φ430 C size clutch |
Driving Axle
| AC16 Strengthen widen whole steel-cast 16T off road axle with double
decelerator and double tires Ratio:4.77 |
Front axle | HF9 steel-cast 9T font axle,stick brake |
Braking system
| Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear
wheels Auxiliary brake: engine exhaust brake Option:ABS |
Electrical System | Operating voltage:24V, negative grounded |
Steering | ZF8098 German Hydraulic steering with powder assistance |
Wheel & Tyres | 12.00-20 No.of Tyres:10+1 |
No. of Spring | 10/12 |
Front/ Rear axles loading capacity (kg) | 7000 /18000 |
No. of axles | 3 |
Wheel base mm | 3225+1350 |
Front/ Rear wheel track mm | 2041/1830 |
Front/Rear hanging mm | 1540/1550 |
Approach/ Departure angle (°) | 20 /29 |
Dimensions(L×W×H) (mm) | 7665*2496*3490 |
Van dimension mm | 4800*2300*1500 F style lifting cylinder Thickness: floor 8mm side 6mm |
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108,
54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons
mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted
crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer,
tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting
crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
