3axles Flat Bed Flatbed Deck Semi Trailer for container 25-40T CImc
Flatbed Container Semi Trailer dedicated to the transport of
various containers, and also can be used to transport ordinary
growth goods with its platform. It has sufficient strength, and
mainly used in transport system, such as ships, ports, routes,
highways, transit stations, bridges, tunnels, multimedia transport
system.
40ft Flatbed Container Trailer can carry 40ft and two 20ft
containers.The flatbed trailer capacity ranges from 20 tons to 80
tons with 2 axle, 3 axles, and 4 axles.
We use high quality tensile steel to reduce beam fracture
probability.The main beam is opting for high tensile steel Q345B
and axle can be selected of BPW or FUWA brand.
Customization is well accepted.
General specification for 3 axles 40ton 40ft flat bed container
flatbed semi trailer |
| Overall Dimension | 12500mm*2490mm*1600mm |
| Tare Weight | 6750kg | Pay Load | 40ton |
| King Pin Setting | 1120mm | Rear Overhang | 1690mm |
| Track | 1840mm | Wheel base | 7080mm+1310mm+1310mm |
Running Gear |
| Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam |
| Tires | 11.00-20, 11.00R20,12.00-20,12.00R20,, 12units |
| Axles | FUWA, BPW axle, 13T capacity |
| Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake |
Under Frame |
| Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. |
| Cross Beam | Mild Alloy Q235 |
| King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled |
| Landing Gear | Single side operation or double side operation, Static capacity
30Ton |
| Twist Locks | 12 lock positions with 8 twist locks |
| Appendix | 1 tool box, length 1.0m |
Electrical & Paint |
| Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector,
fog lamp, number plate light |
| Wiring | 24V, 6 lines |
| Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket |
| Paint | Sand blasting before painting, color upon request |

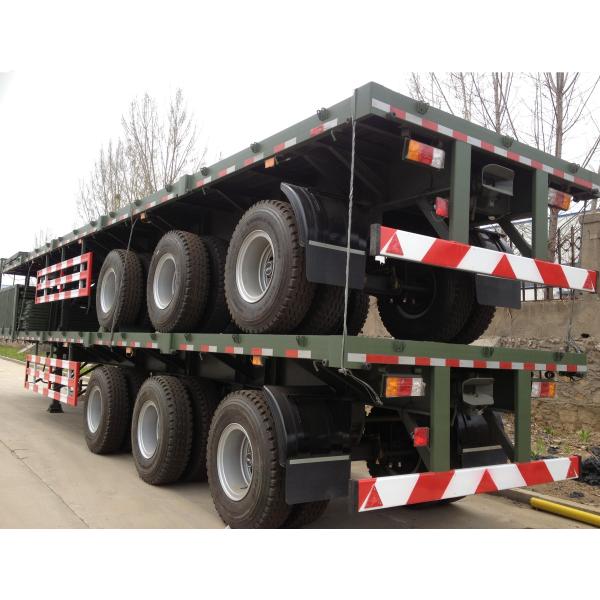

The Detail of 3 axles 40ton 40ft flat bed container flatbed semi trailer
