Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis

    Buy cheap Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4  truck Chassis from wholesalers

    Buy cheap Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4  truck Chassis from wholesalers
    • Buy cheap Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4  truck Chassis from wholesalers
    • Buy cheap Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4  truck Chassis from wholesalers
    • Buy cheap Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4  truck Chassis from wholesalers
    • Buy cheap Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4  truck Chassis from wholesalers

    Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis

    Ask Lasest Price
    Brand Name : CIVL
    Model Number : CIVL
    Certification : ISO,CCC
    Price : US $40,000-50,000 / Unit
    Payment Terms : L/C, T/T
    Supply Ability : 300 UNITS PER WEEK
    Delivery Time : Within 35 days
    • Product Details
    • Company Profile

    Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis

    Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis


    Features:
    Packaging Details
    wax-coated on roro vessel for Beiben truck shipping
    Delivery Time
    Shipped in 30 days after payment

    Specifications:


    Driving type4x4
    Dimension(Lx W x H)(unloaded)mm8826×2500×3385
    Inner dimension (mm)6500x2300x600
    Approaching angle/Departure angle(°)26/22
    Overhang(front/rear) (mm)1410/2616
    Wheel base (mm)4800
    Max speed (km/h)90
    Curb weight (kg)7960
    EngineModel (WD615.38)WEICHAI Diesel engine, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection
    Displacement (L)9.726/Diesel
    Bore X stroke (mm)126/130
    Max power (kw/rpm)279/2200 (380HP)
    Max torque (Nm/rpm)1500/1300-1600
    EmissionEURO II
    ClutchModelSingle dry frictional disc, hydraulic boosting
    GearboxModel

    9JS180, mechanism (1800N.m)

    9gears, 1reverse gear, manual

    Brake systemService brakeDouble circulation air brake system
    Assistant brakeEngine exhaust brake
    Park brakePotential springs pressing on middle and rear wheels
    Steering systemModelZF8098, whole circulation in ball, hydraulic booster
    FrameFish belly, shape, variable width, variable sections, side beam structure
    Front axleDouble-shoe pneumatic brake, non-driving steering axle
    Middle and Rear axle

    Double-shoe pneumatic brake, casting, double reduction driving axle


    Tyre12.00R20
    Electrical systemBattery2X12V/135Ah
    Generator28V-35A
    Starter5.4Kw/24V
    Cab

    Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly


    Photo details:

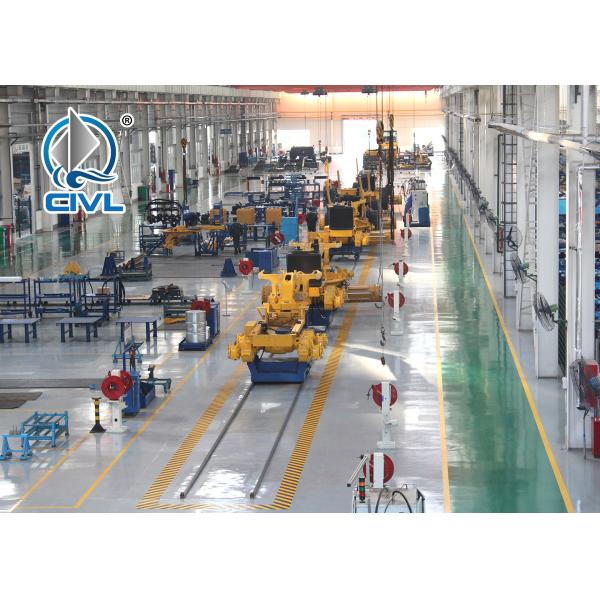

    Quality Inspection:

    Service:


    Pre-service:

    1. Sample testing support.
    2. View our factory.
    3. Design various solutions as buyer's requirement.


    After-sale service:

    1. Training how to use and maintain the truck.
    2. Our engineers supply the support of technology.
    3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
    4. Parts supply on time.
    5. 24 hours service and technology support

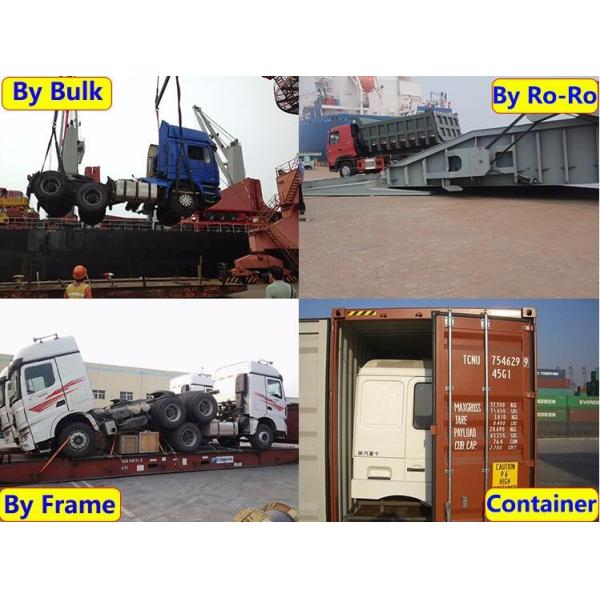

    Shipping:


    Trucks/ Heavy Trucks/Heavy Duty Truck/Special Vehicles/Tipper/Dumper/Dump Truck/Dump Tipper/Tipper Truck, Special Dump Truck/Tractor Truck/Trailer/Prime Mover/Semi Trailer/Special Trucks/Lorry/Cargo Truck/Van/Goods Vehicles/Lorry Truck/Concrete Mixer/Cement Mixer/Mixer Truck/Truck Mixer/Concrete Pumper/ Concrete Mixer Truck/Mini Truck/P/Transporter/Water Tank/Tank Truck/Oil Tank/Powder Tank /HOWO Refuelling Truck/Water Tank Truck/Sprinkler/Road Sprinkler/Road Sweeper/Terminal Truck/Terminal Tractor/Garbage Compactor/Garbage Truck/Refuse Compactor/Bulldozer/Wheel Loader/Grader/Excavator/ Crane/Truck/Truck Crane/Refrigerated Truck/Nsulated Truck/Box Truck/Mobile Telecommunication Truck/Special Automobiles/ Low Bed Trailer with Two Axles/40‘ Contrainer Trailer/
    Workover Rig Chassis For Oil Field/ Powder Material Transportation Truck, Wood Transportation Truck, Vehicle Crane
