    CCC Fuel Truck Diesel Engine Overall Dimension 5995×2050×2480mm

    Ask Lasest Price
    Brand Name : CIVL
    Model Number : CIVL
    Certification : ISO,CCC
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets / every month
    Delivery Time : Within 35 days
    Price : negotiable
    • Product Details
    • Company Profile

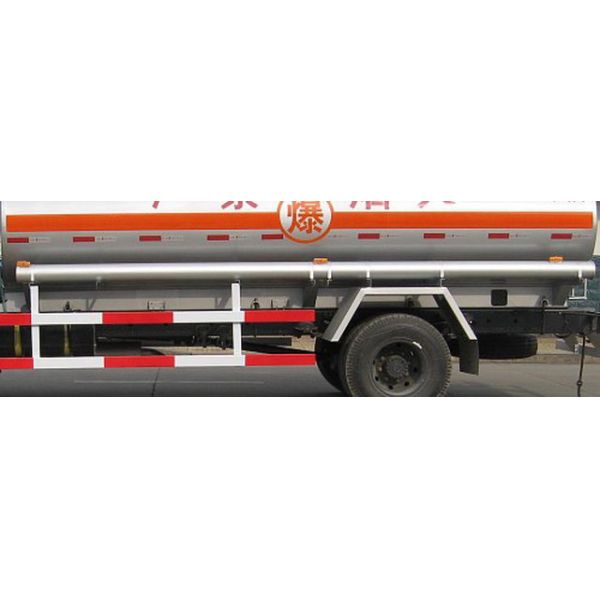

    CCC Fuel Truck Diesel Engine Overall Dimension 5995×2050×2480mm

    Fuel truck's Main features as below


    Vehicle name:Fuel truck
    Vehicle type:Special vehicle
    Vehicle model:SHMC5087GJYD
    Engine model:CY4102-CE4DEngine power83
    YN38CRD285
    Engine displacement:3856Engine make:Dongfeng Chaoyang Diesel Power Co. Ltd.
    3760Kunming Yunnei Limited by Share Ltd
    Fuel type:Diesel
    Overall dimension:5995×2050×2480Box(L/W/H):××
    Total weight(Kg):7995
    Curb weight(kg):4030Permitted capacity(kg):3770
    Front passenger(Persons):3
    Approach/departure angle:20/19Front/rear overhang:1160/1475
    Wheelbase(mm):3360Axle load:2750/5245
    Axle Nos:2Max.drive speed(km/h):79
    Spring nos:11/11+7,9/12+9,3/5+3,8/9+6,11/9+7
    Tire Nos:6Tire type:7.50-16LT,7.50R16LT,8.25-16LT,8.25R16LT
    Front wheel track:1625Rear wheel track:1545
    Steering mode:Steering wheel
    Chassis standard:GB17691-2005EURO Ⅳ,GB3847-2005
    Identification code:LZZ1BADC×××××××××
    Others:Effective volume of tank: 5.65 cubic meters, the overall dimension of tank (length x width x height) (mm) : 3950 * 1700 * 1150;Medium: gasoline, medium density: 700 kg/m3.the rear suspension corresponds to the wheelbase parameters.the side and rear protective device made of Q235A, the connection methods are bolted connection, the sectional dimensions of the rear protective device is (width x height) :100mmx50mm, height from the ground is: 450 mm. We only use the equipment of YN38CRD2 engine, front axle disc brake, speed limiter, ABS and radial tyre chassis , produced by the kunming yunnei power co., LTD.,the model of ABS system is XH - KQ4S4M - E01.The car should be installed with GPS function running recorder. Both sides of tank supply Circular tube box.
