| Brand Name : | CIVL |
| Model Number : | CIVL |
| Certification : | ISO,CCC |
| Payment Terms : | L/C, T/T, L/C, T/T |
| Supply Ability : | 1000 sets / every month |
| Delivery Time : | Within 35 days |
| Price : | negotiable |

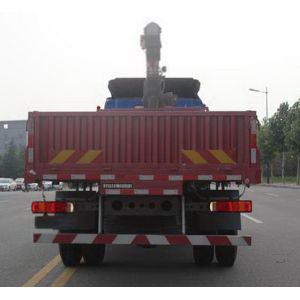

Truck with crane's Main features as below
| Vehicle name: | Truck with crane | ||
| Vehicle type: | Special vehicle | ||
| Vehicle model: | SHMC5164JSQB | ||
| Engine model | YC4E140-42 | Engine power | 103 |
| YC4E160-42 | 118 | ||
| Engine displacement | 4260 | Engine manufacturer | Guangxi yuchai machinery co., LTD |
| 4260 | |||
| Fuel type: | Diesel | ||
| Overall dimension(L/W/H): | 8995×2498×3785 | Box(L/W/H): | 5850×2400×600 |
| Total weight(Kg): | 15795 | ||
| Curb weight(kg): | 8570 | Permitted capacity(kg): | 7030 |
| 9570 | 6030 | ||
| 8852 | 6748 | ||
| 9057 | 6543 | ||
| Front passenger(Persons): | 3 | ||
| Approach/departure angle: | 27/20 | Front/rear overhang: | 1240/2555 |
| Wheelbase(mm): | 5200 | Axel load: | 5850/9945 |
| Axel nos: | 2 | Max.drive speed (km/h): | 95 |
| Oil consumption: | 26.2,26.3 | Spring nos: | 8/10+8,9/12+9,9/11+7,11/12+9 |
| Tyre nos: | 6 | Tire type: | 9.00-20,9.00R20 |
| Front wheel track: | 1886 | Rear wheel track: | 1845 |
| Steering mode: | Steering wheel | ||
| Chassis standard: | GB17691-2005EUROⅣ,GB3847-2005 | ||
| Identification code: | LZZ1BBFH××××××××× | ||
| Others: | The model can option half high bridge, high bridge, dome.The left
and the right protective device is installed in the left and right
longitudinal beam, material for steel Q235-2, connecting method for
bolt connection;after bottom is connected with main frame ,
material for steel Q235-5, connecting method for bolt connection,
the sectional dimensions is (width x height) :100mmx100mm.The height of the lower edge is 450 mm from the ground.The vehicles installed with GPS function running recorder. there is a one-to-one correspondence between the crane model and the rated lifting crane quality and weight one-to-one correspondence, crane model is respectively: QYS - 5 Ⅱ, QYS - 6.3 Ⅲ, ST174-063, SQ6.3 SK3Q;Rated lifting quality respectively: 5000 kg, 6300 kg6300kg, 6300;Crane weight (kg), respectively: 2000 kg, 3000 kg, 2282 kg, 2487 kg. there is also a one-to-one correspondence between the loaded quality and the whole equipment’s quality .the model of the ABS system is XH - KQ4S4M - E01, produced by guangzhou xihe automobile electronic equipment co., LTD.Fuel consumption to declare a value of the Engine YC4E140-42 and YC4E160-42 are 26.2L/100kmand 26.3L/100km,respectively. | ||

|
