Side Dump Semi Trailer 3 Axle 40T Container Flat Side Rollover Semi
Dump Trailers
Side Dumper Truck Trailer
The Semi Trailer Dump Truck is pulled goods volume can reach 45 CBM
(non-standard 65CBM),
the weight can reach 80t - 100t, greatly improving the work
efficiency is 8x4 self
unloading alternative products (Dump Truck up to pull 25 CBM).
Dump type semi trailer mainly used in the transportation of earth,
ore, building materials and other bulk cargo.With the hydraulic
dumping system,it can realised self dumping saving both time and
effort. Side dump type semi trailer can discharge the cargo through
the dide of the box.This special design are aim to heavy duty
vehicle,it can make sure the safety when discharge.
Specification:
| Product name | 3 axle side dump semi trailer | OverallDimension (L*W*H)mm | 13000x2500x3630mm(height of cargo box is 600- 1800mm) | | Loading capacity | 60-80 ton | | Axle | 3*13 ton Fuwa Brand | | Suspension | mechanical suspension with 10-pcs leaf spring (Optional: air
suspension) | | Main Beam | The height of the beam is 500 mm,upper plate is18mm,down plate is 18mm,middle plate is 10mm. | | Side beam | 20 channel or ‘H’ steel | | Steel sheet | Floor thickness 4mm, side wall thickness 3mm | | Hydraulic Jack | Full of Chinese brand hydraulic system | | Tire type and quantity | 11.00R20 Chinese brand, 12pcs+1 spare tyre | | King Pin | Adjustable king pin, size 50# (2'') or 90#(3.5’’) | | Landing Gear | Standard 28T | | Spare Tire Carriers | 2 pieces | | Tool box | One set standard | | Brakes | Dual lines pneumatic brake system, (Optional: ABS); 6 air chamber;
parking brake | | Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | | Tailgate | One-piece tailgate with upper articulation, safety lock system | | Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector,
fog lamp, number plate light | | Wiring | 24V, 6 lines | | Paint | 1 coat of anticorrosive prime,twice coats of final paint. |
|

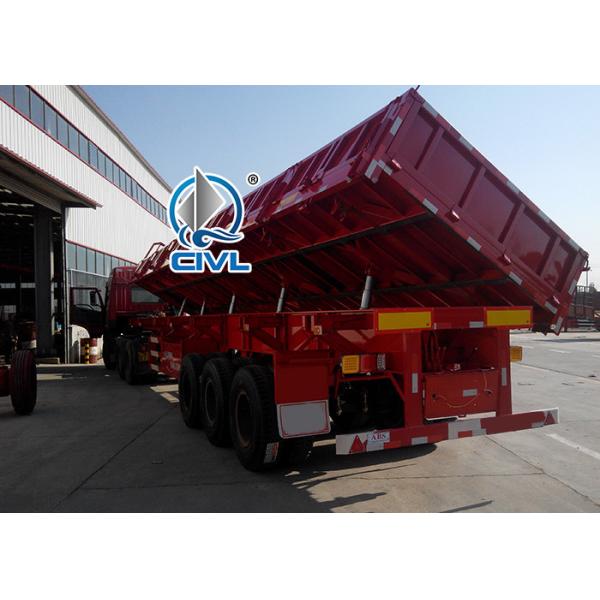

Detailed photo:
