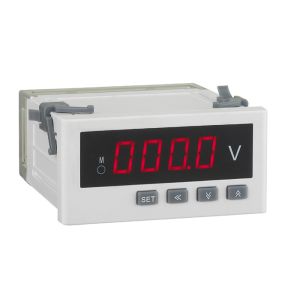

    Alarm Output Digital Panel Voltmeter , 96*48mm Voltage Monitoring Device Automation Control

    Ask Lasest Price
    Brand Name : WDLYCH
    Model Number : WD-BUA
    Certification : ISO9001:2000/ CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 300,000pcs/month
    Delivery Time : 15 days after down payment
    • Product Details
    • Company Profile

    Alarm Output Digital Panel Voltmeter , 96*48mm Voltage Monitoring Device Automation Control

    Alarm Output Digital Panel Voltmeter , 96*48mm Voltage Monitoring Device Automation Control


    1. Applications:


    Measuring and displaying the voltage in electric power network and automation control system.With the characteristic of direct-reading, high accuracy, good stability and anti-vibration.


    2. Key Features:


    • . Suitable for HV & HV voltage system;
    • . High accuracy IEC62053-21 0.5%;
    • . Built in MODBUS-RTU via RS485 port;
    • . Optional analog output 4-20mA / 0-20mA

    3. Technical Parameters:


    • Electric Features:

    Accuracy0.5%(Default), 0.2%
    Display ModeLED display
    Input
    Rated ValueAC110V, 450V, 690V
    OverloadContinuous: 1.2s; Instant: 10s
    Frequency45-65Hz
    Power SupplyWorking RangeAC/DC 80-270v
    Consumption<1VA
    Digital InputDry contact mode
    Relay OutputContact Capacity: AC5A/250V
    Analog OutputCurrent OutputDC4-20mA/ 0-20mA
    Voltage OutputDC0-5V, 1-5V, etc
    CommunicationRS485 interface, Modbus-RTU Protocol
    ProtectionIP64(Front panel), IP20(Meter body)

    • Environment

    Working Temperature-25-55
    Storage Temperature-20-75
    Relative Humidity93RH
    Pollution Degree2
    Measuring TypeCAT III
    Insulating Ability

    Between power and input or output ≥AC2kV

    Between input and output ≥1kV


    4. Wiring Diagram:



    5. Optional Functions:

    All of our meters can work with optional functions, such as RS485 communication, analog output, switch input, transducing output and so on.
