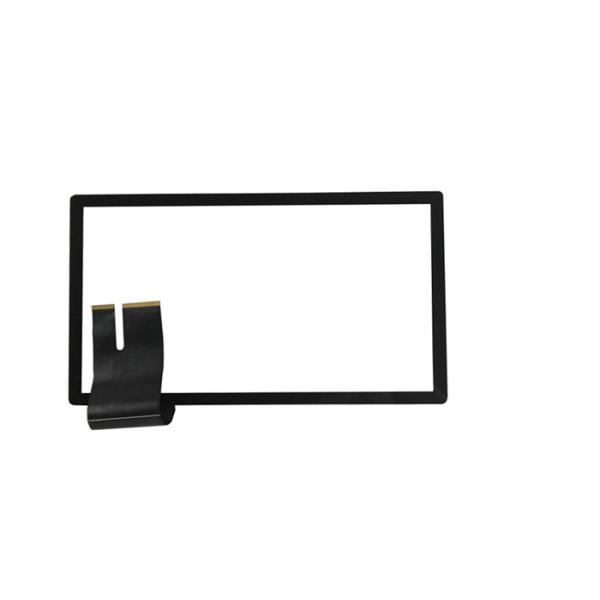

24" Projected Capacitive Touch Panel With Multi Touch Points And
Customized PCAP Touch
Basic specification:
| Size | 24inch |
| Total thickness | 2.4±0.3mm |
| Outline of Cover Lens | 546.5*352±0.3mm |
| Outline of ITO Sensor | 545.5*351±0.3mm |
| Viewing Area | 520.5*326±0.3 mm |
| Active Area | 521.5*327±0.3 mm |
| Interface | USB |
| Input voltage | 5V |
| Response time | 10ms |
| Panel color | Black |
| Transmittance | ≧85% |
| Input method | Hand writing or capacitive pen |
Capacitive touch panel:
Capacitive Touch Panel is to use the working current of induction
of human body.The operational principle of the projected capacitive
touch panel: There are two layers of the ITO layer under the
surface of glass. This ITO layer respectively forms the electric
field of X axis and Y axis, which can keep balance by crossing the
surface of the class. Once the fingers approach the glass surface,
the fingers and the electrode X axis or Y axis will form a new
electric field, which can make the local capacitance change. Then
the controller will determine the location based on capacitance
changes.
Features:
1. Projected Capacitive touch screen
2. Customization: AG / AR / AF / Anti-Bacterial
3. 3.5 inch to 86inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. Low MOQ
Applications:
Touch Kiosk, All in one Digital Signage, Advertising Machine , Medical device, Industrial monitor, Multi-touch table, POS, Restaurant menu
Competitive advantages:
1.21 years experience in designing and manufacturing touch panel,
G+G / G+F+F are available.
2. A strong research team for both software and hardware and
provide good pre-sales and after-sales service.
3. Except some standard products, customized touch panel from 3.5”
to 86” now, the bigger size is been developing and researching.
4. Touch-China has created a complete ecological chain related to
intelligent touch display products, from AG glass material - cover
glass - capacitive touch panel- optical bonding with LCD display.
5. Own industrial parks, good guarantee for product quality and
lead time.
6. Touch panels for automobile,industry are in a leading position
in China.
Delivery time:
Sample: 15 days
Mass production:
1.Small sizes(smaller than 12.1 inch): 18days.
2.Large sizes(larger than 12.1 inch):20days.
Reliable Testing:
Working temperature and
humidity | -20~+70℃, 20~85%RH |
Storage temperature and
humidity | -30~+80℃, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 70℃, 120H |
| Cold resistance | -20℃, 120H |
| Thermal shock | -20 ℃ (0 . 5hour)-70 ℃ (0 . 5hour)
by 50 cycles |
| Humidity resistance | The requirement shall be satisfied after being exposed at 85% RH
for
120 hours and normal temperature and humidity for 24 hours. |
| Heat resistance | The requirement shall be satisfied after being exposed at 80℃ for
120
hours and at normal temperature and humidity for 24 hours. |
| Cold resistance | The requirement shall be satisfied after being exposed a t -30℃ for
120
hours and at normal temperature and humidity for 24 hours. |
| Thermal shock | The requirement shall be satisfied after being exposed at -30℃ (0.5
hour)—80℃(0.5hour)by 50 cycles and at normal temperature for 24
hours |
