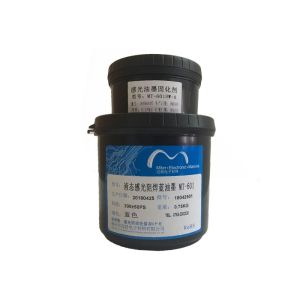

Screen Printing PCB UV Solder Mask Thermal Curable Marking And Character PCB Ink

Thermal curable marking and character pcb ink for pcb industry

Product introduction

Thermal curable marking ink is a high performace dual liquid character ink,low odor,clear graphic.The curing agent is used for long time,and has high heat resistance and is not easy to change.

Technical guidance form is as below :

Operating parameters

1.Open oil

Ink is the main agent and curing agent after mixing the mixing proportion according to the requirements of our company,1KG 10-15 min ,5KG 30min mixing ,stirring,stiring after still more than 15min,so that the ink viscosity stability after use.Do not need to add thinner ink,such as viscosity is too large,can be used to adjust the special diluent,but the amount can not be more than 5%.In order to make good adhesion,it is better to do the cheaning work first,

2.Screen printing

Screen printing:take 100-120T nylon diagonal net tension,23+1N.

Rubber scrper scraping:65 degrees-75degrees of good elasticity,sharp edges,squeegee angle of 5-20 degrees,2-6kg/cm-pressure

Printing film thinkness:10-15um

3.The baking

Single printing single roast:first face 150+/-5 15-20min

second face 150+/-5 20-30min

Single-side printing:150+/-5 20-30min

Matters needing attention:

This specification in all parameters and results for the company's test data,can only be done for early reference,as a gurantee and basis,paractical application to customers for the field test conditions and test results.
