Durable Metal Mesh Partitions , Adjustable Wire Mesh Security Partitions 18 Lbs

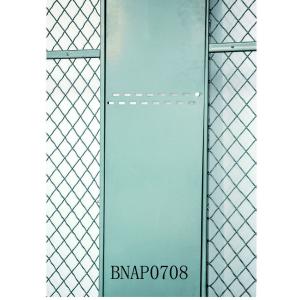

Adjustable Metal Panel for Woven Wire Mesh Partition 8 Feet High and Up to 12 Inch Width

Description

Adjustable panel can fill a gap less than 12 inch for 8 foot high panel wall. Use this adjustable-in-size panel to fill a gap ranging from 1-1/2" to 12" wide. Connects wire mesh panels up to 12" apart. Woven wire mesh security rooms provide high-visibility security, safety, protection and access control. These pre-designed rooms are available with or without a roof, in 2, 3 and 4 sided configurations. The rooms are constructed from high quality 10 gauge steel wire, woven into an extremely strong frame for heavy-duty strength and enhanced appearance. Modular components makes installation easily, protects your merchandise and valuables without change to existing heating, lighting or ventilation system. Components bolt together quickly and can be easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 8' and10' high in five standard sizes ranging from10' x 10' to 30' x 20'. All models can include a 5' W x 8' H sliding gate or hinged door with mortise cylinder lock, or service window as required. Components include: mortise doorlock with 2 keys, top capping, channel stiffener posts, corner posts, floor sockets, wall clips, nuts, bolts and assembly instructions in details. Add suffix A to any model to include sliding service window 5’ wide, padlockable with 12” depth shelf.

Application

Protect and control access to work areas, inventory and equipment

Enclose work areas, to create secure storage cages in factories and to provide access control and loss prevention in warehouse and transit center

Enclosed, lockable areas for service and data security

Separating and securing space in industrial, commercial, or governmental environments

Security for stock rooms and commercial storage facilities as post office

Features

- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- Hinge doors to have 1 1/2 pairs of butt hinges bolted to door and transom frame.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted through wire mesh at 3'6" from floor, additional bar required for 12'
- Top capping bar to be 1 1/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Corner posts to be 1 1/4" x 1 1/4" steel angles with 1/4" bolt holes.
- Locking to be hasps arranged for padlocking, or specify: cylinder mortise type lock operated by key outside, recessed knob inside.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- 10 Gauge steel wire woven into 1 1/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 1 1/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- Floor sockets to be cast aluminum.
- Door frames to be 1 1/4" x 1/2" cold rolled steel channel.
- Finish to be powder coated industrial Grey

Specifications

Ningbo Brynick Enterprises Limited, established in 2006, is an innovative company who integrate the production and sales of warehouse equipment. After a dozen years of market experience and professional development, we are now a modern factory specializing in manufacturing and exporting different storage and safety equipment. We always aim to be a world-level supplier in industrial products and have built strong business relationships with large factories and industrial firms around the world, therefore enjoying a remarkable reputation both domestically and overseas.

Our products include a multitude of industrial equipment that are useful in many firms, including but not limited to supermarkets, warehouses, factories, power plants, research laboratories, retail stores, and offices etc. The first category we focus on is for storage. Whether you are a large industrial firm looking for sturdy racks/shelves for storage of heavy equipment or you are a biochemical lab in need of a service cart for transporting Erlenmeyer flasks, Brynick will satisfy your need with the variety of product selection and customization we offer. The second main category is for safety and/or security. Products such as folding wire container securely transports delicate products, while the mesh security partition offers the secure storage, protection and visibility of factory products, while the cylinder storage cabinet locker keeps flammable material or dangerous chemicals securely stored. Besides from the main categories, we also have related safety and storage accessories, available on www.brynick.com.

We have over 50 products with different specifications available and 100+ customizable accessories to select from. With 12 years of industry experience, our products are packaged to be space efficient and easy to assemble. Depending on the specification and requirements of the customers, we can manufacture parts with different materials and dimensions. Most of the instructions for assembly and product details can be found on http://brynick.com/download/cat1.pdf.
