Medical Instrument PN-1816 1x4 Two Plate Mold Cold Runner No.21060-B

Medical Instrument

PN-1816 (1*4)

No.21060-B

Standard mold base P/N: CI2025.507070.

The Chitwing mold is a high-quality mold manufactured in Guangdong, China. It is built to LKM

mold standards, ensuring that it meets the highest industry standards for quality and durability.

With a mold life of 500k shots, this mold is designed to withstand repeated use and produce

consistent, high-quality parts. The net weight of the mold is 94 kg, and it has a size of

250X250X251mm

☆ Surface finish: SPI B-1
☆ Steel of cavity and core: harden with 1*4/S136

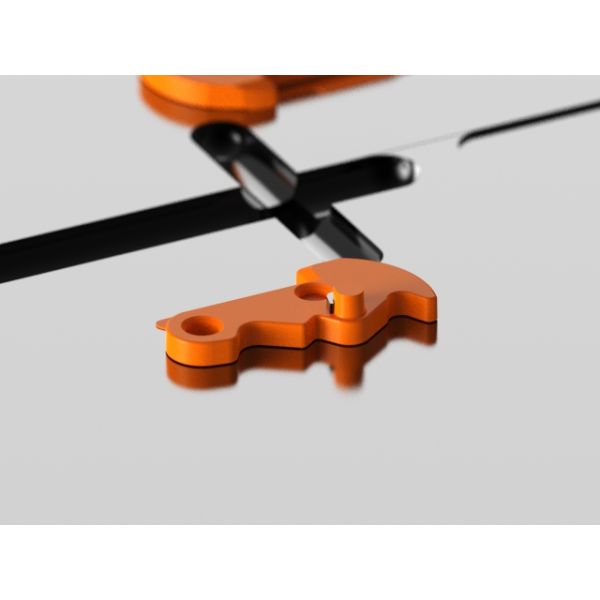

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
