High frequency transmission wiring harness , copper braided wire
cable odm / oem
1. Product description
High frequency transmission wiring harness , copper braided wire
cable odm / oem production process includes tinning, stranding,insulation
extrusion, assembly, braided or looped isolation, outer extrusion,
high temperature extrusion, irradiation and molding. Electronic wiring harness
generally selects PVC, PE and so on as the insulator, the isolation
layer is generally tinned copper wire winding. To achieve soft, convenient wiring
and isolation signal interference, reduce noise characteristics. Waterproof rating IP68.
Feel free to contact with us, if you ever needed to consider your
wire harness solution.
2. Product information
Product Name | High Frequency Transmission Wiring Harness , Copper Braided Wire
Cable OEM / ODM |
Harness material | Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
Product application | Various types of electrical appliances and other equipment |
Length, color | Customized according to customer needs |
Samples | Samples confirmed first before mass production |
Serve | Whole-course specially-assigned follow-up, to provide fast and
efficient service |
Test requirement | Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N,continuity test |
MOQ | Negotiable |
After-sales service | Authentic guaranteed, factory outlets center |

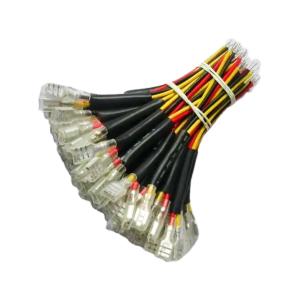

3. Picture of real products
4. Application area
I: Communication systems: wireless communication equipment, RF
signal transmission systems, antenna systems and other
communication applications that require high frequency signal
transmission. Copper braided cables and high-frequency transmission
electronic wiring harsets can be used to connect wireless base
stations, antennas, RF transceivers, modems and other devices to
ensure stable transmission and anti-interference performance of
high-frequency signals.
II: Radar system: Radar systems often need to transmit high
frequency signals for target detection and tracking. Copper braided
cable and high-frequency transmission electronic wire harness can
be used to connect radar antennas, signal processors, control units
and other components to ensure accurate transmission of
high-frequency signals and anti-interference performance.
III: High frequency measurement equipment: High precision
measurement equipment, such as spectrum analyzer, oscilloscope,
signal generator, etc., need to transmit high frequency signals for
accurate measurement and analysis. Copper braided cables and
high-frequency transmission electronic wiring harnesses can be used
to connect these devices, ensuring accurate transmission of
high-frequency signals with minimal signal loss.
5. Feature
I: Copper braided cable: Copper braided electronic wiring harness
adopts copper braided shielding structure, which can effectively
reduce the influence of external electromagnetic interference on
the signal. Copper wire braided shielding provides good
anti-interference ability and can maintain the stability and
accuracy of the signal.
II: High frequency transmission capability: These electronic wire
harnesses are designed for high frequency signal transmission with
high frequency response and bandwidth. To ensure accurate
transmission of high frequency signals and minimum signal loss.
III: Anti-interference capability: Since high-frequency signals are
more susceptible to interference, the high-frequency transmission
electronic wiring harness adopts shielding structure and
anti-interference technology to reduce the influence of external
interference on the signal.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring
harness, data wiring harness, video wiring harness, motor wiring
harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire,
monitor cable, electric operating table wire harness, electric
knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness,
navigation harness, automotive harness, instrument panel harness,
sensor harness, compressor harness.
