Automatic powder press machine is mainly used for press food, tea, ceramic, metallurgy, ore material, disinfectant, detergent, magnetic products, bath bomb,etc We can offer you the full auto semi-auto hydraulic bath bomb machine and full auto bath bomb shrink wrapping machine,our machines mainly export to USA.

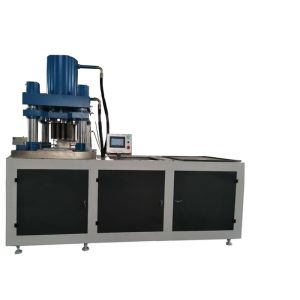

This machine is the four-column hydraulic type press machine, The machine pressure can reach 100T,this machine can reach multi-cavity mould pressing, keep the same pressure, greatly improve production efficiency. Electric control system adopts computer system control PLC control,touch screen operation, time can be adjusted in the processing, which can realize automatic and manual two kinds of works. Mainly consists of mainframe and control structure of two parts through the main line and electrical device connected.
Technical Parameters:
| Production Capacity | 3-5molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤200T(1. step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Up stroke≤250mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 18. 5kw 22kw(Servo) |
| Weight&Size | Approximately:4800kg 2500mm*1100mm*2100mm(L*W*H) |
Descriptions and Advantage:
Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology.
Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily.
The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor.
Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution.
Technology and Advantage:
Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production.
Uniform density of the compressed tablet can be ensured through special technology.
Can compress the tablet with different layers and different colors.
Production capacity can be raised many times under certain conditions.
If some abnormal condition occurs,it will stop immediately and minimize its negative effects.
Applications
| Agriculture: | Feed block, fertilizer tablets, animal food, animal salt lick |
| Electronics Batteries: | Thermistor, integrated circuit components, carboniferous brush films... |
| Health Products: | calcium, propolis tablets, effervescent tablets, bath salts tablets... |
| Chemical: | disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials... |
Before-sale Service
1. Professional consultation about each type of machine is provided.
2. Free testing service is offered to help customers purchase suitable machine.
3. Warm welcome to visit and evaluate our factory.
4. To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
A. We would like to recommend machines based on your requirements as following:
1. Product name
2. Products' size and shape
3. Products' weight
4. Capacity
B. We will design, customize and make dies for you.
After-sale Service
1. All the machines will be adjusted and tested before shipping.
2. Installing,debugging and training to workers are all offered, after customers receiving our tablet press machine.
