Waste PE Film Recycling Machine with Plastic Crusher,crusher
plastic machine,shredder plastic machine,grinder machine
LIANDA Design
>>The LIANDA Film Granulator has been specially designed for
the processing of flms,plastic bags, pp raffia bag, Jumbo bags,
Cement bags etc soft plastic. It has a centrally hinged two-piece
cutting chamber with a robust welded steel construction, with the
upper and lower sections of the housing meeting horizontally.
Reversible stator knives with double cutting edges are fitted as
single elements to the lower section of the housing, allowing
multiple re- sharpening and adjustment of the stator knives. There
is a hinged screen cradle and hinged door for easy screen access.
>>The rotor is a heavy duty paddle type design with knife
cover plates to protect the blades when processing abrasive
applications. The knife mounting bolts are screwed into the
mounting plates as opposed to the rotor. All knives are
manufactured from chrome nickel tool steel as standard, but when
processing applications that are particularly abrasive the
granulators can be fitted with a specially designed wear resistant
rotor utilizing wear resistant steel parts and hardox facing.
>>The v-cut cutting geometry offers distinct advantages over
other rotor designs, including higher throughput with reduced power
consumption, better quality cut, and lower noise levels. The rotor
configuration provides between 20-40% additional throughput in
comparison to standard rotor configurations.
>>Specially designed knife setting jig means that the knives
can be adjusted from outside the machine, significantly reducing
the downtime required to change/set knives.

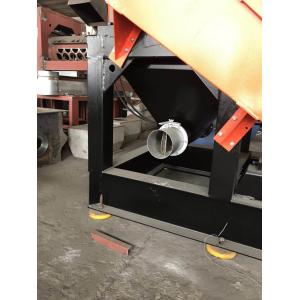

>>The base frame has a solid welded construction with
anti-vibration rubber feet to reduce vibration and noise.' The
drive motor is mounted on tension rails to allow easy adjustment of
the V-belt tension. Integrated suction trough for material
discharge.
>>Specially designed hopper with 3 sets of curtains to
prevent material flybacks. Integrated rundown safety device
prevents access to the rotor until it has come to a complete stop.
A safety switch prevent machine startup when the front panel is
open and the machine features emergency stop buttons on the machine
body and control panel.
It is also ideal machine for the secondary cutting when positioned
behind pre-shredders of recycling systems.
| Model-XPSA | 600 | 900 | 1200 | 1500 |
Motor power (KW) | 30 | 55 | 90 | 110 |
| Rotary blades Qty | | | 8 | |
| Stable blades Qty | | | 4 | |
| Rotating diameter | 450 | 550 | 550 | 660 |
| Blade material | 9CrSi, SKD-11, D2 or Customized |
| Sieven screen | |
3.Machine Details
1
| Blades frame Using "V" structure design, professional design for soft plastics; |
|
| The 1-2mm distance between the screen and the blade is the
guarantee for doubling the output, and the requirements for
equipment processing and manufacturing are more difficult; |
| 2 | Crusher open Adopt Hydraulic open. Hydraulic tipping device can efficiently, safely and quickly
improve the blade sharpening work;
|  |
| 3 | The design of the plastic bottle crusher is reasonable, and the
body is welded with high-performance steel;
|
|
| Adopt high-strength screws to fasten, solid structure and durable. |
| 4 | External bearing seat. Effectively avoid the casing of the crushing of material into the
bearing, improve the bearing life |
|
| Suitable for wet and dry crushing. |
| 5 | Sieve Screen Welded strip screen makes the materials with high sediment content
such as broken mulch film and agricultural film more
wear-resistant;
|
|
| 6 | Equipped with an enlarged pulley to increase the inertia of the
crusher, which can save energy and powerfully crush.
|
|
| 7 | Using Siemens motors and Wafangdian bearings, high-quality
configuration to ensure the stability of long-term work.
|
|
| 8 | Electrical elements Adopt Star-Delta Start
|
|
Turnkey project service(LDPE LLDPE PP plastic squeezing pelletizing machine):
1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction,
technician support for the clients
3.After sales: we arrange engineer to install the machinery and
training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
