100m Span Fiber Optic ADSS Cable 48 Core Aerial With Double Jacket

Factory price outdoor single mode all dielectric 100m span ADSS 48 core aerial fiber optic cable with double jacket

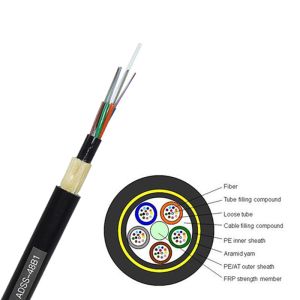

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound.

The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath.

After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Specification

No. of cable						48
Fiber Model						G652D
Central Strength Member	Material				FRP
Central Strength Member		Diameter(±0.05)mm				1.5
Loose Tube	Material				PBT
		Diameter(±0.06)mm				1.8
		Thickness(±0.03)mm				0.32
		The Max.Core NO./Tube				12
Filler rope	Material				LDPE
Filler rope		Diameter(±0.06)mm				1.8
Water Blocking Layer						Flooding Compound
Additional Strength Member						Aramid Yarn
Inner Sheath	Material				PE
Inner Sheath		Thickness(±0.1)mm				0.9
Outer Sheath	Material				PE
Outer Sheath		Thickness(±0.1)mm				1.7
Cable Diameter(±0.2)mm						12
Cable Weight(±5)kg/km						108
Cable breaking strength(RTS)						5.8Kn
Working Tension (MAT)						2.2Kn
Wind velocity						30m/s
Icing						5mm
Span						100m
Crush Resistance				Short Term	2200(N/100mm)
				Long Term	1100(N/100mm)
Min. bending radius			Without Tension		10.0×Cable-φ
			Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)			Installation		-20~+60
			Transport&Storage		-40~+70
			Operation		-40~+70

Application

Application note

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.

For overhead power lines under 110kV, PE outer sheath is applied.

For power lines equal to or over 110kV. AT outer sheath is applied.

The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Related Products

Packaging detail: 2km / export wooden drum (your request is available )

Remark:Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Note:
1. Storage/Operating Temperature:-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st

This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.

Our Company

FAQ & Contact

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
