FTTX box is a new economic fiber distributed solution for outdoor
use. Compare traditional products, FTTX Enclosure is easy to
operate and has high compatibility. It can be used for
wall-mounting, aerial installation or holding pole installation,
based on different situation.FTTX Enclosure not only used in FTTH
field, but also used in FTTA or other harsh environment.
Features and Benefits
*High compatibility: can be assembled ODVA, Hconn, Mini SC, PTLC,
PTMPO or power adapter.
*Factory-sealed or field assembly.
*Strong enough: working under 1200N pulling force long term.
*From 2 to 12 ports for single or multifiber harsh connectors.
*Available with PLC or splice sleeve for fiber divide .
*IP68 waterproof rating.
*Wall-mounting, aerial installation or holding pole installation.
* Decreased angle surface and height make sure no connector
interfering when operating.
*Meet IEC 61753-1 standard.
*Cost effective: save 40% operating time
Specification
| Dimensions(LxWxH) | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
| Ingress protection | IP67 |
| Temperature range | -40~80℃ |
| Cable strength member | Armoured or Non-armoured |
| Cable type | Hybrid or non-hybrid |
| Round cable OD | 5.0mm to 14.0mm |
| Flat cable dimension | 4.6x8.9mm |
| Cable jacket material | LSZH,PE or TPU |
| Bending Radius | 20D |
| Cable crush resistance | 200N/cm long term |
| Tensile strength | 1200N long term |
| UV resistance | ISO 4892-3 |
| Fire protection rating | UL94-V0 |
| Number of PLC | 1to 2pcs |
| Number of fusion protection steeve | 1to 24pcs |
Application
1.FTTH field
2. FTTA field
3.Trunk Cable Connecting
4.Prospecting or Military Communication
Company Information
We are a leading company in developing and manufacturing advanced fiber
optic products,mainly make fiber optic indoor and outdoor cable,
CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic
jumper and PLC Splitter. With years of experiences in the fiber

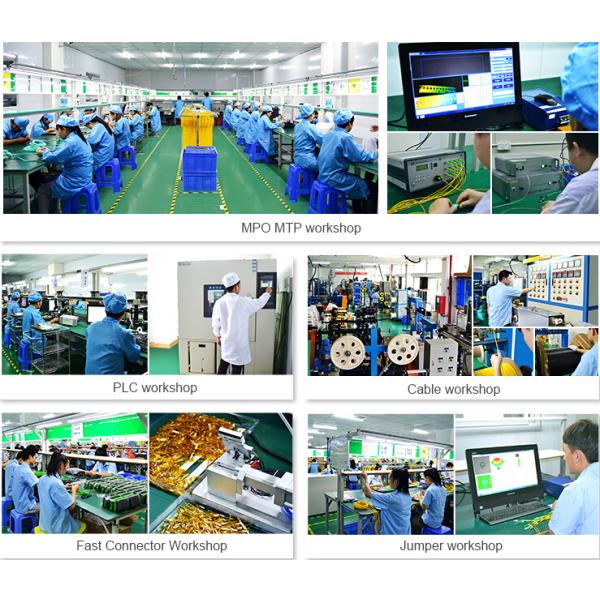

optic industry, our factory is fully equipped over 5000 square
meters and more than 30 non dust production lines .About 250
well-trained staff and engineers are contributing to our proud
products. We have 5 production lines for fiber optic cable, 2 high
standard MPO/MTP jumper assembly lines, 15 production lines for
standard jumper and 8 PLC Splitter production lines. The most
advanced imported polishing equipment and testing instruments
enable our products have super quality, such as Senko polishing
machine, interferometer, automatic cleaning machine and OTDR ,JGR
and so on. All of our optical products are RoHS compliant and also
obtained ISO9001, ISO14001 certification. Our high quality products
and outstanding service win the customer from all the world, Our
fiber optic is looking forward to cooperate with you.
