2 Port SM SX Fiber Optic Adapter SC PC Singlemode Simplex for FTTH System

Ask Lasest Price
Model Number :	SC UPC adapter
Brand Name :	ODM/OEM
Certification :	RoHS, CE
Price :	$0.09/pieces 100-999 pieces

Add to Cart

Product Details
Company Profile

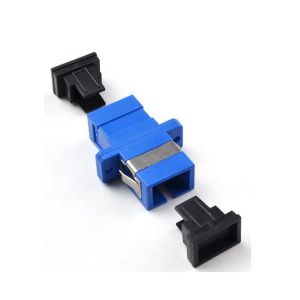

2 Port SM SX Fiber Optic Adapter SC PC Singlemode Simplex for FTTH System

SC PC singlemode simplex adpater 2 port SM SX fiber optic adapter

Fiber optic adapter is also called fiber optic coupler. It contains the interconnect sleeve, that holds the two ferrules
together.It is used to provide a cable to cable fiber connection.

SC-UPC(PC) fiber adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together. SC-UPC(PC) fiber optic adapters are flange type in plastic housing; Single mode adapters are with Ceramic sleeve while multimode fiber adapters are with bronze sleeve.

Feature

1, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional

5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
7, High precision of mechanical dimensions
8, High reliability & stability

Technical data

Parameter for adaptor
Parameter	Unit	Description
Parameter	Unit			SM/PC	SM/APC	MM
Sleeve		Zirconia	Zirconia	Phosphor Bronze
Operation Wavelength	nm	1310 or 1550			850
Insertion Loss	dB	0.2	0.2	0.2
Connection Durability	Times	1000 Mating
Operating Temperature	(°C)	-40~+80
Storage Temperature	(°C)	-40~+85
Relative Humidity	%	95

Application
