Transparent Medical Instrument PN-2051 (1*4) / Two-plates mold / Cold runner No.21059-B

Transparent Medical Instrument

PN-2051 (1*4)

No.21059-B

Mold base: Standard CI2025.507070.

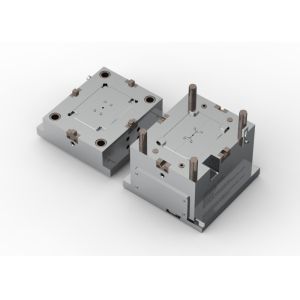

This mold features an LKM mold base and has dimensions of 250mm in height, 250mm in

width, and 251mm in depth. Designed for injection molding with PC, it utilizes a cold runner

system for efficient material flow. The mold cavity and core are made of S136 mold steel,

with an SPI B-2 surface finish for enhanced durability. Equipped with a side gate, the mold

ensures optimal injection performance. With a lifespan of at least 500,000 shots, this mold

offers long-lasting service and reliability.

☆ Part size:7.79mm [L] x9.75mm [W] x5.76mm [H]
☆ Part weight:0.12g

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
