Transparent Medical Instrument PN-1691 (1*4) / Two-plates mold / Cold runner No.21063-B

Transparent Medical

Instrument PN-1691 (1*4)

No.21063-B

Mold Standard:LKM (Standard mold base P/N: CI2025.508070)

The mold has dimensions of 250mm in length, 250mm in width, and 261mm in height.

It features 2 slides and has a net weight of 93kg. T

he mold utilizes side gate structure design. A 100T injection molding machine is used,

and the injection-molded part is made of PC+PET material with a net weight of only 0.11g.

The part's dimensions are 10.22 x 6.70 x 10.20mm.

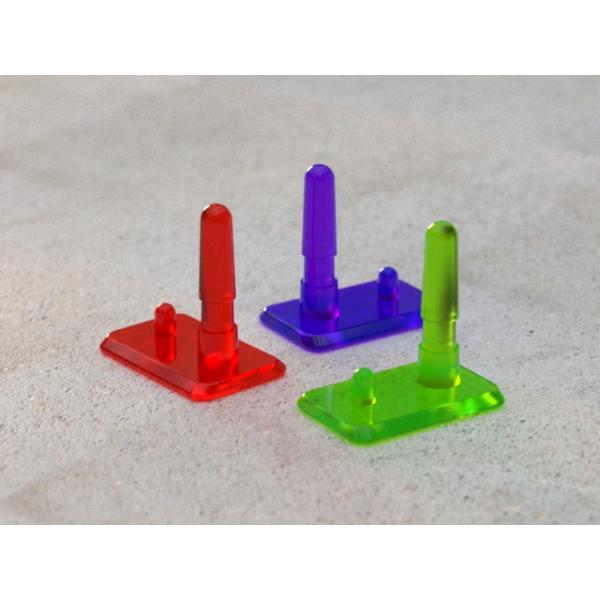

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
