Transparent Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B

Transparent Medical

Instrument PN-1500 (1*4)

No.21062-B

The mold brand is Chitwing, manufactured in Guangdong, China, and is designed for a

100T injection molding machine. The mold surface is polished to SPI B-2, and the cavity

and core are hardened using 1*4/S136, providing better smoothness, higher hardness,

corrosion resistance, and wear resistance. This prevents POM from sticking to the mold,

allowing for easy demolding and smooth part surfaces. The tool life is greatly extended

(up to 500k shots), making it suitable for mass production. The mold is well-fitted and

free of flow marks and gas marks.

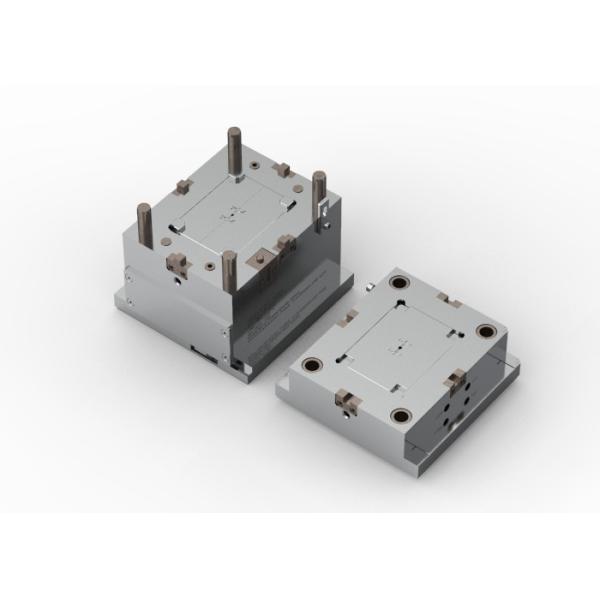

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
