Description

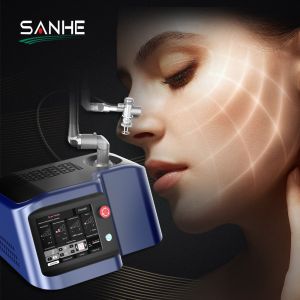

The fractional CO2 laser machine is a cutting-edge medical device
that utilizes advanced laser technology for skin treatment and skin
rejuvenation. This state-of-the-art machine is equipped with a
10600nm diode laser, a highly effective and safe wavelength for
skin resurfacing treatments.
This innovative laser system features three treatment heads in
various shapes and sizes to meet individual client needs, providing
flexibility and customization for skin resurfacing treatments. The
multi-shape spot size of the treatment tip helps to improve the
accuracy and precision of the laser beam.
One of the most notable advantages of this fractional CO2 laser
machine is its ability to provide excellent results for acne
removal, scar removal, and other skin resurfacing treatments. It
aids in collagen regeneration, skin firming and overall skin
regeneration.
CO2 laser machine principle:
1.The CO2 laser beam heats and vaporizes the skin tissue ,
instantly removing the superficial layers of the skin. Each
fractional micro spot creates a thermal zone. Intact cells around
the treated area help the healing process . This process induces
cell regeneration. The contraction is immediate and the structural
improvement of the skin you start to see about one week after the
procedure .
2.Delivers multiple arrays of 10600nm laser beam to the skin by
fractional scanning, forming a burning zone of an array of laser
points on the epidermis. Every laser point, consisting of single or
severla high-energy laser pulses, penetrates directly into dermis
to form a tapered hole, produces the effect of vaporization,
solidification and carbonation for the biological tissue, enseal
small blood vessels, and decrease the bleeding. The high-energy
laser also stimulates the proliferation and reorganization of
collagen tissue, while the contraction of tapered holes tighten the
skin, making it more fair, smooth, delicate and elastic.
Advantage
Three cutting heads , Gynecological Heads and Digital Endoscope.

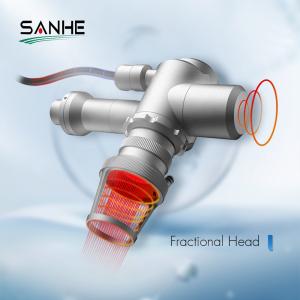

SCANNER HAND PIECE
120 µm Spot
Scars
Deep Wrinkles
Tightening
300 µm Spot
Large Pores
Skin Texture
Luminosity
1000 µm Spot
Skin Toning
Texture
Luminosity
SURGICAL HANDPIECES
Zoom 0.2 a 10mm Handpiece
Micro F50 Handpiece (optional spot 500 µm)
Micro F100 Handpiece (optional spot 1000 µm)
Gynecological Heads and Digital Endoscope
1. This machine can do a professional gynecology treatment
2. Air blow button make treatment more cleaning.
Fractional CO2 laser machines are designed with three different
treatment heads, each with a different spot size and shape to suit
different treatment areas. This versatile device allows for faster
and more efficient tailoring of different skin resurfacing
treatments to individual client needs.
Metal RF Tube
Metal RF tube
More refined
More efficient
long time 7-10 years
More uniform
Less recovery time
Long time to use ( 7-10 years)
use air cooling,no need maintance
Energy is even in every dot
Scanners
1. Use the Metal Rf tube with 10600nm diode laser, which is less
traumatic for the skin
2. 7 laser shapes for diffrent treatment area.
Before and after
Application:
Fractional Laser can be used for the following conditions:
. Fine lines and wrinkles
. Stretch marks
.Age spots
. Acne scars
. Sun damaged skin
. Surgical scars
. Large pores
Skin Rejuvenation
. Scars
. Dyschromia
. Pholoaging Skin
. Nevus
. Warts
Laser Type: | 10.6pm |

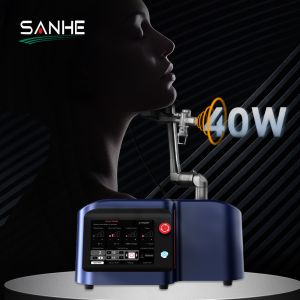

Output Power: | 40W |
Focal length of working head: | F=75mm |
Indication Beam: | Red Diode Laser (650nm <5mW) |
Transmission System: | 7-Articulation Joint Spring Arm |
Smoke Exhausting System: | Built-inairblow |
Cooling System: | Air cooling |
Environmental temperature: | 5°C-40cC |
Relative Humidity: | <80% |
Power Supply: | ~220V±22V,50Hz±1Hz |
Dimension: | 52*68*132cm |
Weight: | 35kg |
