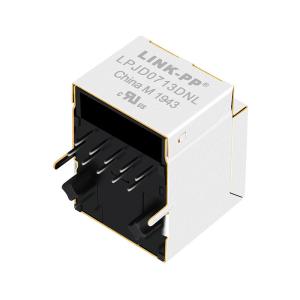

    HFJV1-1G01RL 1000 Base-T RJ45 Vertical Jack Without Leds LPJD0713DNL

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : HFJV1-1G01RL
    Certification : UL,ROHS,Reach,ISO
    Price : $0.09-$3.85
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 4200K-PCS/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    HFJV1-1G01RL 1000 Base-T RJ45 Vertical Jack Without Leds LPJD0713DNL


    Product Overview


    The HALO HFJV1-1G01RL is a single-port, vertical, magnetic RJ-45 jack designed for Gigabit Ethernet (10/100/1000 Base-T) applications. It belongs to HALO Electronics’ FastJack series of modular connectors.


    Typical applications include networking equipment, routers, switches, embedded devices, and other board-mounted Ethernet interfaces that require high-speed connectivity and integrated magnetics.


    Key benefits include:


    1. Built-in magnetics for space and cost savings.
    2. Top-entry vertical mounting for streamlined board layout.
    3. Shielded construction for EMI resilience.
    4. Broad compatibility with Gigabit Ethernet protocols.

    Technical Specifications

    ParameterValue / Description
    Halo Part NumberHFJV1-1G01RL
    LINK-PP Part NumberLPJD0713DNL
    Ports1 × RJ-45 (8P8C)
    Mounting styleThrough-hole (vertical)
    Network speed10/100/1000 Base-T
    Contact plating≥ 30 µin gold
    Operating temperature0 °C to +70 °C (standard)
    Board heightApprox. 16.51 mm (0.650")
    Dimensions (L×W)≈ 21.59 mm × 16.00 mm
    UL ratingHousing material: UL94V-0
    Shielding

    Yes – metal shell, EMI tabs


    HFJV1-1G01RL 1x1 RJ45 Vertical Jack Dimension:



    HFJV1-1G01RL 1000 Base-T RJ45 Vertical Jack circuit:


    HFJV1-1G01RL​ Similar Part Number Contact us for Datasheet:


    HFJV1-1G01RLHFJV1-1G01-L11RLHFJV1-1G01-L12RL
    HFJV1-1G06RLHFJV1-1G06-L11RLHFJV1-1G06-L12RL
    HFJV1-1G11RLHFJV1-1G11-L11RLHFJV1-1G11-L12RL
