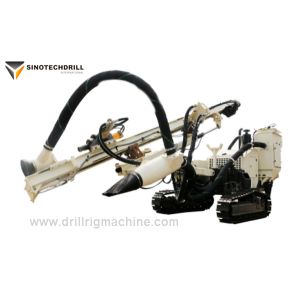

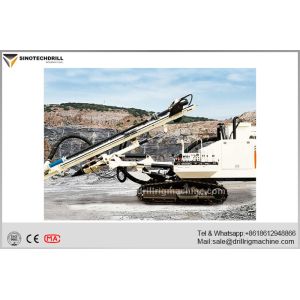

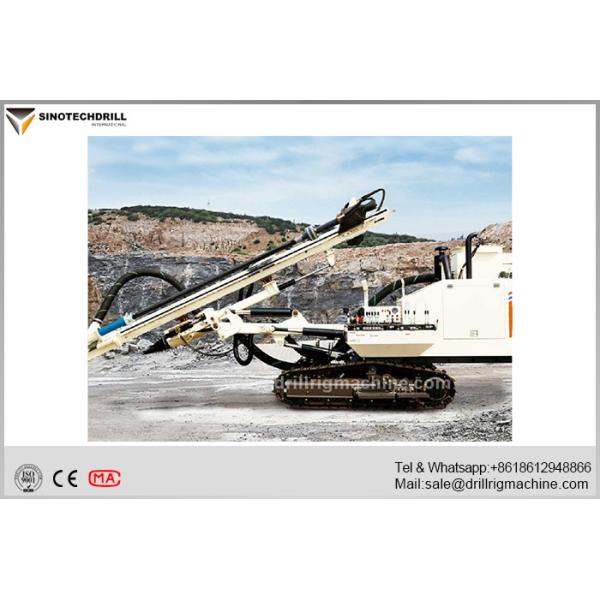

Separate DTH Drill Rig Machine for Various Mining Conditions
Introduction
This product is a separate down-the-hole drilling rig that is
jointly developed by Sandvik to suit various mining conditions, and
realizes the perfect application of engineering machinery
technology on the drilling rig. The product has a wide working
surface, high rock drilling efficiency and strong stability.
Characteristics:
*Strong rock drilling ability:Equipped with high air pressure
hammer, high impact frequency and higher opening efficiency
*Fuel saving:Three-stage engine for construction machinery with
high fuel efficiency
Strong dust removal,:double-stage dry dust removal, imported
filter, excellent dust removal effect
*High security:Equipped with emergency stop button, one-stop
parking, reversing horn, high-light work light to ensure personnel
and equipment safety
*Excellent electrical system:Germany standard wire harness
connector for engineering machinery, easy to replace, waterproof
and reliable
Main parameters
| Total weight | kg | 7200 |
| Hole diameter | mm | 90~152 |
| Best diameter | mm | 115 |
| Impactor´s brand and size | " | Lingong 3.5,4,5 |
| Rod outer diameter | mm | 76 |
| First rod length | mm | 3000 |
| Common rod length | mm | 3000 |
| Max. turning torque | N.m | 2400 |
| Rotating speed | rpm | 0-114 |
| Propulsion system | Motor chain |
| Maximum lifting force | kn | 20 |
| Engine and Power | Yuchai73.5kw@2200RPM,three stages |
| Max. walking speed | km/h | 3.5 |
| Max. climbing ability | ° | 30 |
| Track pitch angle | ° | ±10 |
| Ground clearance | mm | 486 |
| Dust collecting device | Standard,Dry,Two-stage |
| Shipping size(without drill rod frame) | length | mm | 7060 |
| width | mm | 2240 |
| height | mm | 2750 |
