Durable and Long Warranty 16M Excavator Long Boom Excavator Long
Reach Boom and Arm for CAT320
Product presentation of excavator long reach:
- Material: Both boom and arm are made of Q355B, the hydraulic steel
pipes are Cold drawn seamless steel pipe, the pin material is 40Cr,
the high pressure hose is joint venture pipe with 4 layers of wire
coil, the butter pipe is single layer hose, and the bushing into
the large arm base is graphite alloy copper sleeve.
- Parts included: 1pcs long boom,1pcs long arm, 6pcs pins, 4pcs high
pressure hose, 5pcs grease pipe, 1kit linkage, 1pcs bucket
cylinder, 1pcs bucket.
The arm cylinder can use the original to save cost, if you need the
arm cylinder, we also can prepare - Product advantages: plasma cutting, beveling edge before welding,
assembly line production operation, robot welding, boring after
welding, quality is more guaranteed. Can supply customized service
according to customer requirements. The o extended Angle of the
boom and arm can reach 163 degrees, and the max work range and the
max cut height are larger.
Suitable working conditions: municipal engineering, subway
construction, river dredging, reservoir cleaning, and other water
conservancy projects.
Advantages of Zhonghe Excavator Boom Arm:
1. Applicable for all the make and model of the excavator.
2. Many different materials such as Q345B, and Q690D are optional
to suit your application.
3. Big boom can be two jointed pcs to make it fittable into a
container to save shipping costs.
4. All the seams are 45 degrees tapered before welding.
5. All parts have a warranty
6. Some parts can be consolidated using a thicker plate or
overlapping another plate for heavy-duty application.
7. The boom cylinder and arm cylinder can also be supplied if the
customer wants.
8. Extra pipelines can be added to suit some extra applications.
9. The conventional material is Q355B. The plate is thin, high in
strength, and light in weight, and reduces the load of the
excavator.
10. The bushing in the boom seat cover is made of copper (with
self-lubricating carbon powder inside to extend the life of the
long arm).

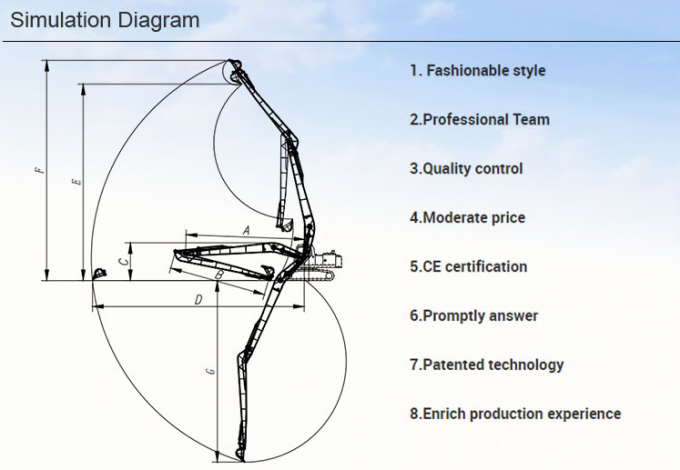

| Type | Boom length | Arm length | Fold height | Max work range | Max unload height | Max cut height | Max cut depth | Bucket capacity | Bucket cylinder | Self-weight |
| 12T | 7100mm | 5900mm | 2900mm | 11200mm | 7350mm | 9350mm | 9000mm | 0.3 | 12T | 3000KG |
| 20T | 8220mm | 7160mm | 2980mm | 14500mm | 10390mm | 12510mm | 11340mm | 0.4 | 12T | 4000KG |
| 25T | 8220mm | 7160mm | 3050mm | 14500mm | 10490mm | 12610mm | 11370mm | 0.4 | 12T | 4200KG |
| 30T | 1000mm | 8000mm | 3210mm | 17300mm | 11720mm | 13920mm | 13010mm | 0.6 | 20T | 5400KG |
| 35T | 11000mm | 9000mm | 3210mm | 19200mm | 12920mm | 15120mm | 15000mm | 0.7 | 20T | 6200KG |
| 40T | 12000mm | 10000mm | 3400mm | 21100mm | 14240mm | 16900mm | 16500mm | 0.8 | 20T | 6600KG |
| 45T | 13000mm
| 11000mm
| 3400mm | 229900mm | 15230mm | 17800mm | 18000mm | 0.8 | 20T | 7400KG |

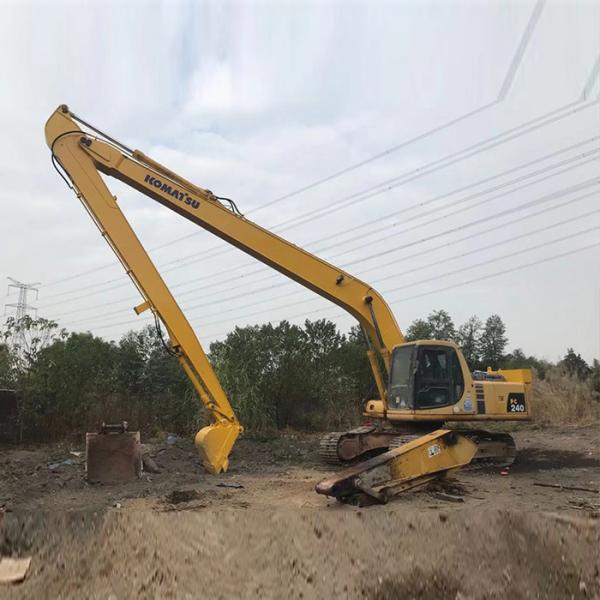

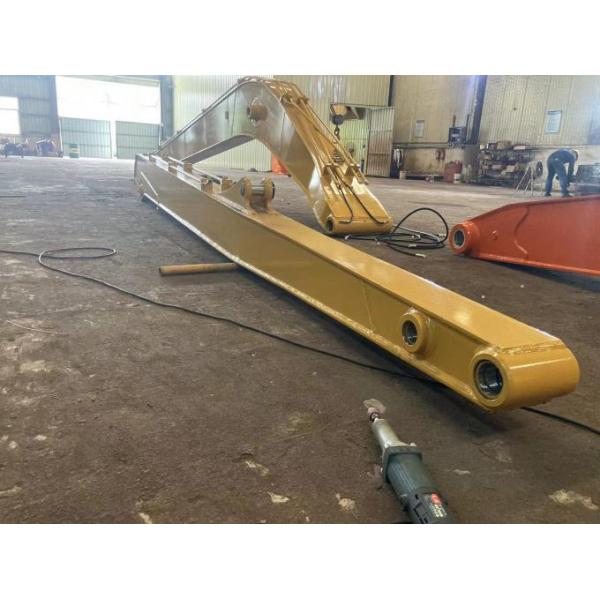

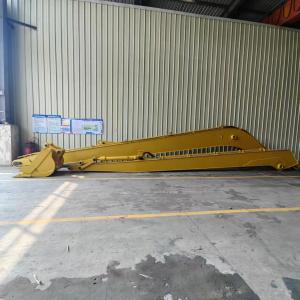

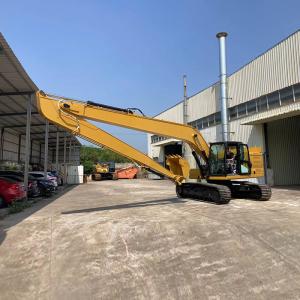

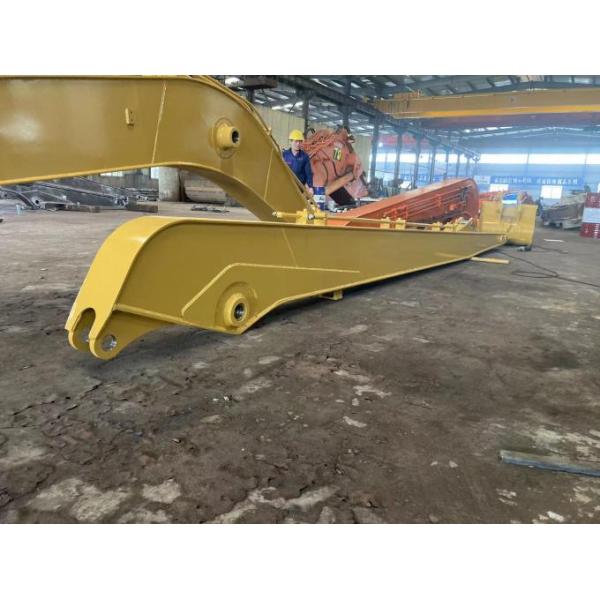

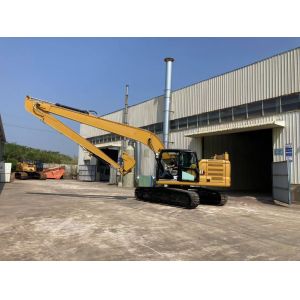

Actual Photos of Excavator Long Reach:
Kaiping Zhonghe Machinery Manufactuing Co.,Ltd., is professional
excavator attachment manufacturer in China. We have more than 5
year experiences in producing and exporting.
Excavator long reach boom, 3-stage demolition boom, two-section
demolition boom, sliding arm, hydraulic steel/rock grab, hydraulic
rotary wood grip, sorting grap, bucket, excavator rake, clamshell
bucket, tilting bucket, clamp bucket, hydraulic quick hitch, tilt
quick hitch...etc. and well performed around the word especially
Middle East, Southeast Asia, America.
High quality service
High work efficiency and product customization
Professional production process and product advantages
Q. What is your best price?
A:We are direct factory will offer you best competition price
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for long reach boom?
A: 20 days for 1 kit,30 days for one container(3 kits)
Q: Do you provide parts for maintainance?
A: Yes, we will supply you explode parts list,if you need related
parts,we can supply.
Q: What is your terms of payment ?
30% T/T in advance ,balance before shipmen
