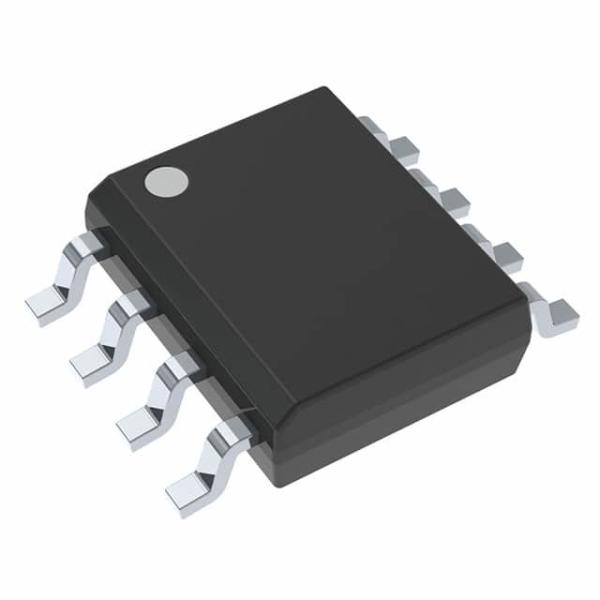

UCC27324DR Electronic IC Chips Dual 4A Peak Low Side Power MOSFET Driver IC

UCC27324DR

Dual 4-A Peak High-Speed Low-Side Power-MOSFET Drivers

FEATURES

• Industry-Standard Pin-Out

• High Current-Drive Capability of ±4 A at the Miller Plateau Region

• Efficient Constant-Current Sourcing Even at Low Supply Voltages

• TTL/CMOS Compatible Inputs Independent of Supply Voltage

• 20-ns Typical Rise and 15-ns Typical Fall Times with 1.8-nF Load

• Typical Propagation-Delay Times of 25 ns with Input Falling and 35 ns with Input Rising

• 4.5-V to 15-V Supply Voltage

• Supply Current of 0.3 mA

• Dual Outputs are Paralleled for Higher Drive Current

• Available in Thermally Enhanced MSOP PowerPAD™ Package with

4.7 °C/W θJC

•Rated From –40°C to +125°C

DESCRIPTION

The UCC37323/4/5 family of high-speed dual MOSFET drivers deliver large peak currents into capacitive loads. Three standard logic options are offered — dual-inverting, dual-noninverting, and one- inverting and one-noninverting driver. The thermally enhanced 8-pin PowerPAD MSOP package (DGN) drastically lowers the thermal resistance to improve long-term reliability. UCC3732x is also offered in the standard SOIC-8 (D) or PDIP-8 (P) packages.

Using a design that inherently minimizes shoot through current, these drivers deliver 4-A of currenT where it is needed most at the Miller plateau region during the MOSFET switching transition. A unique BiPolar and MOSFET hybrid output stage in parallel also allows efficient current sourcing and sinking at low supply voltages.
