    2 Core FTTH Drop Cable Self Support G.657A2 3 Steel Wire LSZH GJYXCH

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GJYXCH
    Certification : ISO9001/CE/RoHS
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    2 Core FTTH Drop Cable Self Support G.657A2 3 Steel Wire LSZH GJYXCH


    2 Core FTTH Drop Cable Self-Support G.657A2 3 Steel Wire LSZH GJYXCH


    Description

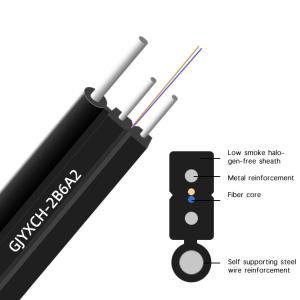

    The GJYXCH FTTH optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

    A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.
    Characteristics
    1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
    2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
    3. Single steel wire as the additional strength member ensures good performance of tensile strengh.
    4. Simple structure, light weight and high practicability.
    5. Novel flute design, easily strip and splice, simplify the installation and maintenance.
    6. Low smoke,zero halogen and flame retardant sheath.

    Features


    1. Compact structure of protable, convenient for indoor wiring.

    2. Excellent resistance to lateral pressure protection design.

    3. Soft, flexible, easy to splice, and high practicability.

    4. Environmental protection. Low smoke, zero alogen and flame retardant sheath.

    Applications


    1. Used in indoor outdoor cabling,especially used for FTTH.
    2. Used as access building cable.


    Cable Parametres

    Model No.Fiber count (core)Cable diametre (mm)Weight (kg/km)Tensile Strength Long/Short Term (N)Crush Resistance Long/Short Term (N)Bending Radius
    Static/Dynamic
    (mm)
    GJYXCH1(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30
    GJYXCH2(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30
    GJYXCH4(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30

    Fiber TypeAttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link lengthMin Bending Radius
    Conditions1310/1550nm850/1300nm850/1300nm850nm850nm
    UnitdB/kmdB/kmMHZ.kmMHZ.kmmmm
    G652D0.36/0.2216
    G657A10.36/0.2210
    G657A20.36/0.227.5
    50/1253.0/1.0≥500/50030
    62.2/1253.0/1.0≥200/50030
    OM33.0/1.0≥1500/500≥2000≥30030
    OM43.0/1.0≥3500/500≥4700≥55030
    B1-OM33.0/1.0≥1500/500≥2000≥3007.5
    B1-OM43.0/1.0≥3500/500≥4700≥5507.5


    We produce and test cable comply with following standard

    Mechanical Performance
    Max Tension PerformanceIEC 60794–1-2-E
    Max. Operation TensionIEC 60794–1-2-E1
    Crush TestIEC 6079 –1-2-E3
    Impact TestIEC 60794–1-2-E4
    Repeated BendingIEC 60794–1-2-E6
    Torsion TestIEC 60794–1-2-E7
    Cable bendIEC 60794–1-2-E11A
    Attenuation CoefficientITU-T G.652
    Structural TestIEC-60793-1-20
    Environmental Performance
    Temperature CyclingIEC 60794–1-2-F1
    Water PenetrationIEC 60794–1–2-F5B
    Filing Compound FlowIEC 60794-1-E14
