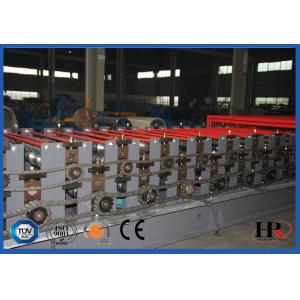

    Brickwork Mesh Metal Deck Roll Forming Machine For Building Reinforced Soil Walls

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SH160810-07
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 25 SETS / year
    Delivery Time : 40 days after payment
    • Product Details
    • Company Profile

    Brickwork Mesh Metal Deck Roll Forming Machine For Building Reinforced Soil Walls

    Metal lath and Brickwork mesh machine composed by roller profiling machine and hydraulic shearer


    General information:


    Machine name/Brief DescriptionDiamond mesh machine
    Rolling Speed12mpm
    NO. of operatorsTwo
    Approx. weight (Total weight)4 tons
    Total power requirement12kw
    Compressed air requirement (cft/min.)0.5M3
    Machine Guardyes
    Machine MechanismRotary
    Line directionLeft to right

    Decoiler:


    ItemNameParameter
    1Inner diameter500mm, adjustable
    2Outer diameter1000mm
    3Loading weightLoading weight of each side is 1t
    4Machine size2650x1970x1620mm
    5Weight1260Kg
    6Two sidesEach rotation 180°

    Roll shearing / expanding


    ItemNameParameter
    1Outer diameter of cutterΦ263mm
    2Blade repaired capacity3 mm
    3Speed or roll and cutting12m/min
    4MotorPower:4kw, Voltage: 380V,
    Rotation speed: 1450r/min
    5Machine size2220x1510x1810mm
    6Weight2352Kg

    Straightening and slitting machine:


    ItemNameParameter
    1Diameter of roll63mm
    2Straightening roller QTY13 straightening rollers
    3MotorPower:3kW, Voltage:380V
    4Reduce speed machineJZQ200—i=20.54
    5Size of machine1800x1665x1725mm
    6Weight1554Kg

    Stacker:


    ItemNameParameter
    1Product size700x3000mm
    2Loading weight1t
    3Loading height500mm
    4Size of machine3610*2900*1620
    5Weight586Kg

    Double head re-winder:


    ItemNameParameter
    1Inner diameter120mm
    2Outer diameter800mm
    3Loading weight300Kg
    4MotorPower: 1.5kw, voltage: 380V, 2 sets
    5Machine size3240x1770x1610mm
    6Weight1420Kg

    Introduction


    Self furring rib lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.


    Machine Show

    Metal lath and Brickwork mesh machine For Building Reinforced Soil Walls
