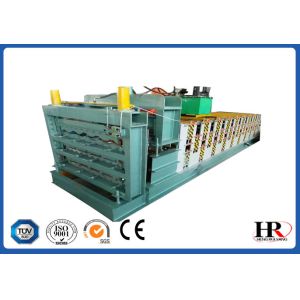

    Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SH160411-03
    Certification : CE ISO SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 30 SETS/ MONTH
    Delivery Time : 40 days after payment
    • Product Details
    • Company Profile

    Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line


    Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line

    Product Description

    Main Parameters

    No.Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line
    1raw materialsuitable materialcolored steel coil, galvanized coil, aluminum coil
    feeding width1000mm
    thickness0.3-0.8mm
    2effective width900/860/910mm
    3rollersmaterial45#steel plated with chrome
    rows9/9/11 rows
    4shaftsmaterial45#steel
    diameterΦ70mm
    5cutting bladehydraulic cutting, Cr12 with quenching treatment
    6capacity10-12m/min
    7weight4.7t
    8control systemPLC control system with transducer inside
    9dimension7000*1350*1500mm
    10machine bodyH-shape steel: 300-350mm
    11middle plate16mm

    PS: the above are for reference; we design machines according to your needs.


    Working Flow

    Three Layer Roofing Panel Roll Forming Machine / Metal Tile Extrusion Line

    Decoiler-----Feeding&Guiding-----Roll Forming-----Hydraulic Cutting------Receiving Table

    Warranty:

    12 months, during which all parts damaged because of quality problem will be changed for free.


    Delivery Time:


    within 30-45 days after receiving prepaid. Some machines in stock, can be delivered at any time.


    Payment Terms:


    40% deposit is paid before production, the balance paid after inspection confirmation before shipment.


    Install and Training:


    if buyers come to our factory to inspect, the training to install and operate is provided face to face.


    if not, manual and video is provided to show how to install and operate.


    After-sale Service:


    We provide 12-hour online service for our customers. Phone: +86 13921193231
