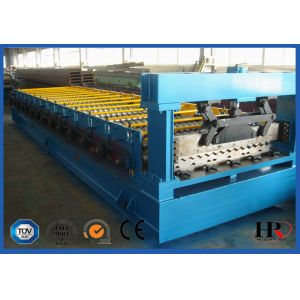

Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots

    Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers

    Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers
    • Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers
    • Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers
    • Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers
    • Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers
    • Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers
    • Buy cheap Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots from wholesalers

    Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SWL151221-91
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 25 SETS/ MONTH
    Delivery Time : 40 days after payment
    • Product Details
    • Company Profile

    Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots


    Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots


    The glazed tile produced by this kind of tile forming machine looks beautiful, elegant and noble. They can be used in garden-style factories, traveling scenic spots, hotels, exhibition centers, villas, civil construction and more.


    NO.ModelWidthThicknessCover Width(mm)Host Size(L*W*H)Power(kw)
    124-210-102512000.4-0.810257*1.6*1.34
    228-207-103512000.4-0.810358*1.3*1.24
    325-195-78010000.3-0.87808*1.3*1.24
    435-253-7609140.3-0.67607.5*1.3*1.25.5
    528-220-110012500.3-0.611008*1.5*1.24
    640-256-7689140.3-0.67689*1.3*1.25.5
    723-205-82010000.4-0.88208*1.5*1.35.5
    830-190-95012000.3-0.89508.5*1.5*1.35.5
    935-190-76010000.4-0.87609*1.5*1.35.5

    Main Equipment


    This kind of tile forming machine consists of a manual decoiler, feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, step-pressed mechanism, high precision counter and driven system protective covering panel supporting table.


    Flow Chart of the Tile Roll Former


    Decoiling-active feeding - Roll forming--Step press -Measuring length-cutting to length-product to stand.


    Machine Placement and Operator


    The tile forming machine should be placed on an even cement floor and lifted by a lifting device with a lifting capacity not less than five tons. It requires space for storing materials and laying the machine and room to operate the machine. In addition, this roll forming machine requires one operator and one porter. The temperature in the workspace should be no less than -14℃.

    Technical Parameters of Tile Roll Forming Machine


    ItemDescription
    Material Width914mm-1250mm
    Material Thickness0.4mm-0.8mm
    MaterialPPGI GI
    Yield Stress235Mpa
    Material of Roller45# steel plant hard chromium 0.05mm
    Diameter of Shaft80mm
    VoltageAC380v/50hz or per customer's requirement
    Motor Power5.5kw
    Hydraulic Power4kw
    Stand11-18
    Control SystemMitsubishi PLC frequency conversion
    Hydraulic Cutting MaterialCr12 heat treatment
    Speed5-8m/min
    Decoiler5 tons manual or hydraulic

    Tile Roll Forming Machine


    ItemDescription
    Material Width1200mm
    Material Thickness0.4mm-0.8mm
    MaterialPPGI GI
    Yield Stress235Mpa
    Material of Roller45# steel plant hard chromium 0.05mm
    Diameter of Shaft80mm
    VoltageAC380v/50hz or per customer's requirement
    Motor Power5.5kw
    Hydraulic Power4kw
    Stand15
    Host Dimension8.5*1.5*1.2m
    Control SystemMitsubishi PLC frequency conversion
    Hydraulic Cutting MaterialCr12 heat treatment
    Speed5-8m/min
    Decoiler5 tons manual or hydraulic

    Tile Forming Machine


    ItemDescription
    Material Width1250mm
    Material Thickness0.4mm-0.8mm
    MaterialPPGI GI
    Yield Stress235Mpa
    Material of Roller45# steel plant hard chromium 0.05mm
    Diameter of Shaft80mm
    VoltageAC380v/50hz or per customer's requirement
    Motor Power5.5kw
    Hydraulic Power4kw
    Stand13
    Host Dimension7.8*1.5*1.2m
    Control SystemMitsubishi PLC frequency conversion
    Hydraulic Cutting MaterialCr12 heat treatment
    Speed5-8m/min
    Decoiler5 tons manual or hydraulic

    Tile Roll Former


    ItemDescription
    Material Width1000/1200mm
    Material Thickness0.4mm-0.8mm
    MaterialPPGI GI
    Yield Stress235Mpa
    Material of Roller45# steel plant hard chromium 0.05mm
    Diameter of Shaft80mm
    VoltageAC380v/50hz or per customer's requirement
    Motor Power5.5kw
    Hydraulic Power4kw
    Stand13
    Host Dimension7.8*1.3*1.2m / 7.8*1.5*1.2
    Control SystemMitsubishi PLC frequency conversion
    Hydraulic Cutting MaterialCr12 heat treatment
    Speed5-8m/min
    Decoiler5 tons manual or hydraulic

    Machinery Photos


    Quality Galvanized Steel Sheet Tile Roll Forming Machine for Traveling Scenic Spots for sale
