    Automatical Metal Roofing Roll Forming Machine With Schneider Components

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SWL151221-88
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 25 SETS/ MONTH
    Delivery Time : 40 days after payment
    • Product Details
    • Company Profile

    Automatical Metal Roofing Roll Forming Machine With Schneider Components

    Automatical Metal Roofing Roll Forming Machine With Schneider Components


    Technical Parameters of Machine


    Main power7.5 KW
    Dimension6.5m * 1.0m * 1.2m
    Forming speed10-20 m/min (not including cutting)
    Roller stations14 sets (as profile drawing)
    Control systemSeimens PLC control with touch screen
    Roller materialGCr15,CNC machining,chromed
    TransducerMitsubishi
    EncoderKoyo
    Other componentsSchneider
    StructureTorri stands structure

    Raw material


    Material typeGI,GL,PPGI,PPGL
    Thickness of coil0.3-0.8mm

    Working process


    A. Passive Decoiler..........................................................To load and uncoiling material


    (We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)


    B. Feeding Applicator.......................................................Infeeder


    C. Roll Forming Unit.........................................................To roll as profile


    D. Hydraulic Cutting.........................................................To cut sheets as desired length


    (We also have non-stop hydraulic cutting system.)


    E. Output Table................................................................Support the finished products


    Final Products ( Roof tiles ) Features


    1. A stylish and attractive design, giving the apperance of a traditional roof tile.
    2. Resistant to frost, heat, hail and gales ; 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
    3. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.


    After-sale Service


    1. The warranty of the machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.


    2. We offer technical support for the entire life of our machines.


    3. We can send our technicians to install and train the workers in the clients' factories.

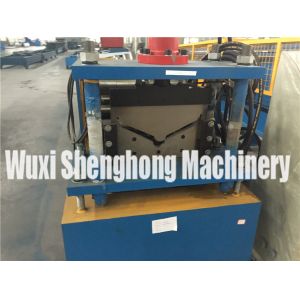

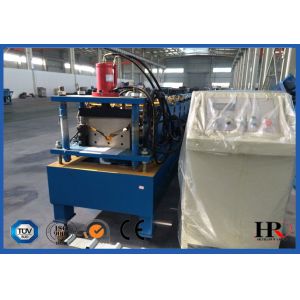

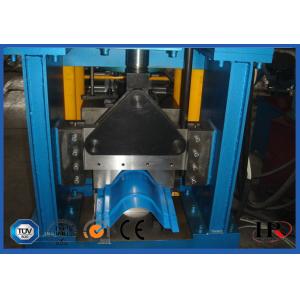

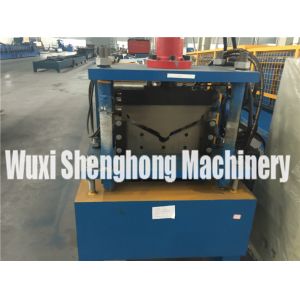

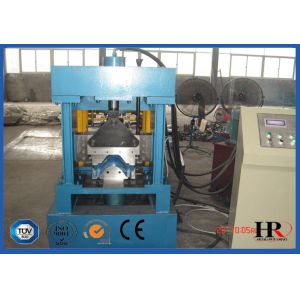

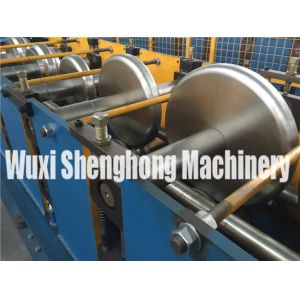

    Machinery Photos



    Workshop Show
