Exceptional Strength Ceramic Tube Pipe High Temperature And Corrosion Alumina Ceramic
Tube Manufacturer

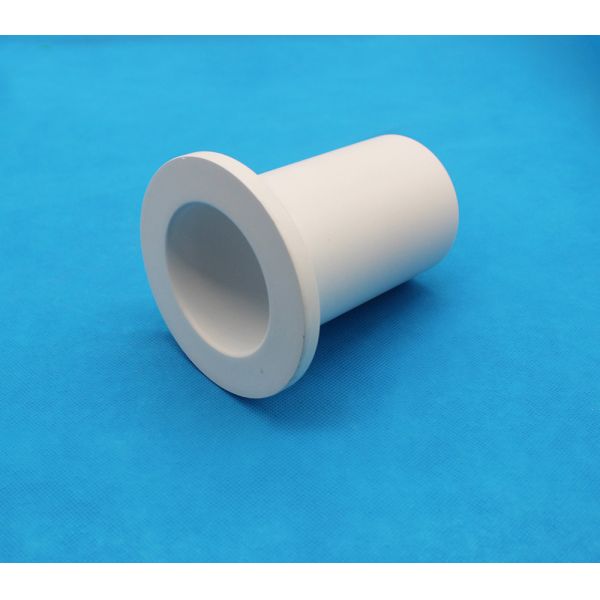

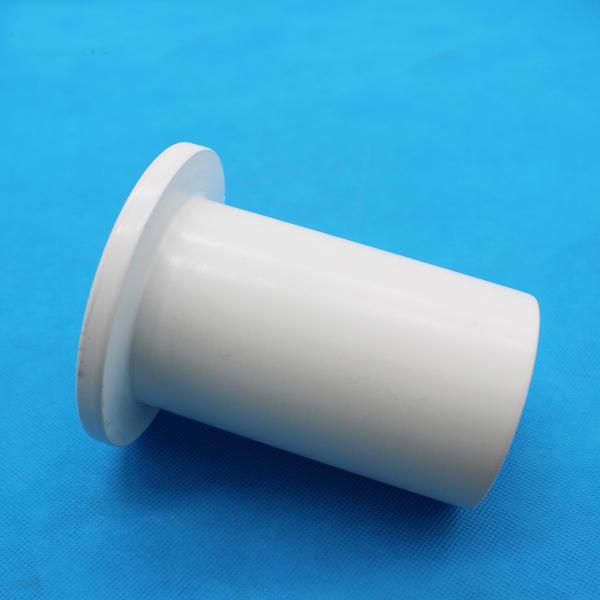

Alumina Ceramic tube Manufacturer
Alumina ceramic tube is a very hard, dense material of exceptional
strength. Alumina ceramic tube exhibits resistance to both high
temperature and corrosion. Electrical properties of alumina ceramic
tube aluminum oxide include high volume resistivity as well as low
loss characteristics at high frequencies. We produce many grades of
Alumina Oxide Ceramic tube products by injection molding, dry
pressing and extrusion processes. By using these processes and
different chemistry, alumina ceramic properties are enhanced to
meet most engineering requirements. Applications for alumina oxide
ceramic include pump seals, temperature sensors, knife sharpeners
and refractory anchors.
| Tube Sizes | | | |
| Outer Diameter | | Inner Diameter | |
| Millimeters–Inches | | Millimeters–Inches | |
| .8mm | .031" | .5mm | .020" |
| 1.6mm | .062" | .8mm | .031" |
| 3.2mm | .125" | 1.6mm | .062" |
| 4.0mm | .156" | 2.4mm | .094" |
| 4.8mm | .187" | 1.6mm | .062" |
| 4.8mm | .187" | 2.4mm | .094" |
| 6.4mm | .250" | 3.2mm | .125" |
| 6.4mm | .250" | 4.8mm | .187" |
| 7.9mm | .312" | 4.8mm | .187" |
| 9.5mm | .375" | 6.4mm | .250" |
| Lengths up to 1000mm are available in some sizes | | | |
  Tolerances | | | |
| Length: | + 1.6mm (.062") | | |
| Diameter: | + 5% or .13mm (.005) whichever is greater | | |
| Straightness: | .006 mm/mm (.006"/inch) | | |
Application industry: Machinery, fiber optic, knife, medical, food,
petroleum etc.
Specific application: plunger, ceramic shaft, fiber optic bushing,
stub, grinding, ceramic knife, ceramic slide guide, machined
plunger, mobile phone shell, watch case, haircut razor blade etc.
| Alumina Ceramic Properties | 96 Alumina Ceramic | 99 Alumina Ceramic |
| Item | Unit | Typical Values |
| Physical Properties |
| Color | | White | Ivory |
| Density | g/cm3 | 3.7 | 3.85 |
| Alumina Content | % | 96% | 99% |
| Gas permeability | | 0 | 0 |
| Water Absorption | | 0 | 0 |
| Mechanical Properties |
| MONS’ Hardness | | | 82 |
| Vickers Hardness (Hv50) | Gpa(Kg/mm²) | 15.7(1600) | 15.7(1600) |
| Flexural Strength(20°C) | Mpa | 300 | 330 |
| Compressive Strength(20°C) | Mpa | 2000 | 2000 |
| Modulus of Elasticity (20°C) | Gpa | 275 | |
| Poisson's Ratio (20°C) | | 0.22-0.23 | |
| Fracture Toughness(20°C) | MPam1/2 | 3.5 | 4 |
| Thermal Properties |
| Thermal Conductivity(20°C-400°C) | W(m.K) | 25 | 27.5 |
| Thermal Expansion Coefficient | 10-6/°C | 6.5-7.5 | 7.6 |
| Thermal Shock Resistance | T°C | 200 | 200 |
| Maximum Use Temperature | °C | 1600 | 1650 |
| Electronic Properties |
| Dielectric Strength | KV/mm | >12 | >10 |
| Dielectric Constant | Er | 9-10 | 9.1 |
| Dielectric Loss Angle(1MHz) | | 0.0002 | 0.0002-0.0003 |
| Volume Resistivity(20°C) | Ω.cm | >1014 | >1014 |
Company Introduction:
We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a
professional manufacturer specialized
in R&D, manufacturing and selling customized all kinds of high
precision zirconia and alumina ceramic parts, ceramic thread tube . Our main products include ceramic rod , ceramic tube, ceramic
plunger, ceramic valve, ceramic plate, ceramic shaft and bearing ,
ceramic nozzle etc , which are mainly used in industrial fields of
Machinery, Petrochemical oil and gas, Valves, Automotive, Food
Processing, Fluid Handling, Process Control, Thermal Processing,
Aerospace, Defense, Eletronic and Electrical, Textile, Mechanical,
Engineering, Mineral Processing, etc.
We have a full service include mold design and development ,
ceramic forming , precision machining
and precision detection technology. We have achieved great
successes in particular requirements
which is based on cooperating with Tsinghua University and getting
rich experience by our professional technical engineer teams . Our
factory have an unique technical called mirror polishing which
improve
our products more smooth , bright than other competitors.
Delivery:
Custom OEM will be shipped within 15 days after determining the
parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the
ceramic plates, please contact us or email:admin@cerampart.com
CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
