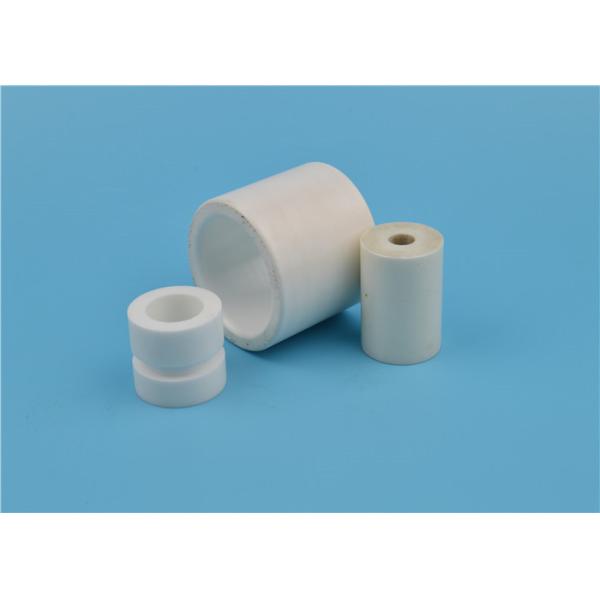

Electrical Insulating Alumina Ceramic Tube Alumina Sleeve / Bushing / Piston

Name: Electrical Insulating Alumina Ceramic Tube Alumina Sleeve Bushing Piston
Brand: Mingrui
Price: 1.21 USD

Ask Lasest Price
Brand Name :	Mingrui
Model Number :	XF-142
Certification :	ISO9001-2005
Price :	USD1.21-5.16
Payment Terms :	L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :	10000 pieces month
Delivery Time :	15 working days after the order confirmed
MOQ :	1 PCS

Add to Cart

Product Details
Company Profile

Electrical Insulating Alumina Ceramic Tube Alumina Sleeve / Bushing / Piston

Electrical Insulating Alumina Ceramic Tube , Alumina Sleeve / Bushing / Piston

Zirconia materials are used in very high wear applications under very high pressure requiring improved fracture toughness and stiffness over alumina. Zirconia is noted for its high strength, toughness, wear and thermal properties. Its high material cost usually warrants its usage extending longer life and reduce down time where alumina fails in this applications.

During manufacture, the zirconia powder is combined with oxides such as Yttria, magnesia or tetragonal and the material is said to be partially stabilised or even it can be fully stabilised if required, varying the composition allows different properties to be enhanced.

Yttria (Y-PSZ) stabilised zirconia are mainly used for excellent wear resistance up to 400’C temperature while Magnesia (MgO-PSZ) zirconia are very good at high temperature offering excellent thermal shock and also wear resistance. Y-TZP Zirconia material has tetragonal in structure and has the highest flexural strength of all the zirconia based materials. The fine grain size of Y-TZP lends itself to be used in cutting tools where a very sharp edge can be achieved and maintained due to its high wear resistance. The fine grade size leads to a fully dense with excellent mechanical strength, corrosion resistance, impact toughness, thermal shock resistance and very low thermal conductivity.

Advantages of Zirconia Ceramics
- High strength
- High toughness
- Excellent wear resistance
- High hardness
- Low thermal conductivity
- Good chemical and corrosion resistanc

Applications of Zirconia Ceramics
- Various wear parts for wear applications
- Valves and pump components
- Ceramic plain, balls and roller bearings
- Tubes, fixtures etc. for High temperature
- Copper tube extruding & reducer dies
- Thermal insulation components
- Wear resistance and Cutting blades
- Ceramic knives
- Grinding media

Product Name	Electrical Insulating Alumina Ceramic Tube , Alumina Sleeve / Bushing / Piston
Material	zirconia
Color	White, Black , Blue , Yellow
OD	0.2mm - 200mm, And According to drawings
Length	5mm - 400mm, And According to drawings
Surface Roughness	Ra0.05
Torlerance	+/- 0.001mm
Lead time:	15 days
Max. working temperature	1500 -2800 °C
Samples	Avaliable
Shipping:	Air Express (DHL/UPS/TNT/ FedEx) or Ocean Shipping

Ceramic parts we can produce:

Alumina ceramic, Zirconia ceramic , Ceramic Dowel pin, Zirconia Positioning pin, Insulating ceramic plate

Ceramic adapter plate,Ceramic centering pin,Ceramic connectors,Ceramic spinner,Ceramic roller

Ceramic blade,Ceramic brackets,Ceramic disc,Ceramic insulator,Ceramic rod,ceramic atomizer

ceramic fuse pin,ceramic nozzle,ceramic ferrule,ceramic necklace,ceramic ornament,alumina ceramic plate, ceramic cylinder, ceramic guide, ceramic pin, ceramic bushing, ceramic brick,ceramic injection molding,ceramic bushings,ceramic smoking pipe, ceramic spacer,ceramic piston pump,ceramic part

ceramic heating element vaporizer e cigarette, al2o3 ceramic, ceramic donut atomizer, alumina ceramic disc, alumina ceramic sheet , ceramic alumina , ceramic pressure sensor , ceramic sheet,

ceramic washer, zirconia ceramic plate, ceramic insert, white ceramic ring, ceramic shaft

ceramic pump, ceramic piston, ceramic nail, ceramic insulators, ceramic rod 3mm , ceramic dowel pin

ceramic pin gage , alumina ceramic parts , ceramic burr , ceramic proppant , ceramic needle

ceramic grinder, alumina ceramic rod , alumina ceramic ring, ceramic conical burr , ceramic heater rod

ceramic gear , machinable ceramic, ceramic arms , white ceramic ornaments , sustained high temperature on ceramics

Mingrui offers you a wide range of production facilities like extrusion, injection moulding, pressing and casting. Depending on product geometry and quantities, we will choose the suitable technique for your products.For the final finishing of the parts we use CNC machining centres, equipped with diamond tools in order to meet high accuracies.

Our aim is to offer the ideal solution for any application. Our engineers therefore offer custom solutions that range beyond our existing product portfolio. With our well-equipped industrial development facilities, we produce innovations that can be rapidly commercially exploited.

Properties Sheet of zirconia and alumina :

Properties	Units	95 Alumina	99 Alumina	ZrO2
Density	g / cm³	3.65	3.92	5.95-6.0g/cm³
Water absorption	%	0	0	0
Coefficient of thermal expansion	10^-6/K	7.9	8.5	10.5
Modulus of Elasticity Young's Mod	GPa	280	340	210
Poisson's ratio	/	0.21	0.22	0.3
HV Hardness HV	MPa	1400	1650	1300-1365
Flexural Strength @ room temperature	MPa	280	310	950
Flexural Strength @700°C	MPa	220	230	210
Compressive Strength @ room temperature	MPa	2000	2200	2000
Fracture Toughness	MPa *m ^1/2	3.8	4.2	10
Heat conductivity @ room temperature	W/ m*k	18-25	26-30	2-2.2
Electrical Resistivity @ room temperature	Ω*mm² /m	>10¹⁵	>10¹⁶	>10¹⁵
Max use temperature	°C	1500	1750	1050
Resistance to acid alkaline	/	high	high	high
Dielectric Constant	/	9.5	9.8	26
Dielectric Strength	KV/mm	16	22	/
Thermol Shock Resistance	△ T ( °C )	220	180-200	280-350
Tensile Strength @ 25 °C	MPa	200	248	252

Main Features:

1) High hardness.

2) High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.

3) Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.

4) High electrical resistivity: alumina is an electrically insulating material.

5) High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.

Company Introduction
Mingrui ceramic manufacture and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.

Mingrui Ceramics has years of experience designing and developing technical ceramic solutions for a wide variety of applications and industries.Wear And Corrosion Resistant Ceramic Shaft Chemical Stirring Rod. We offer this expertise to all of our customers to ensure the best design and materials are chosen for their specific application and needs.Wear And Corrosion Resistant Ceramic Shaft Chemical Stirring Rod,Typically, our custom technical ceramic components and parts we supply are used for one of three main reasons:
