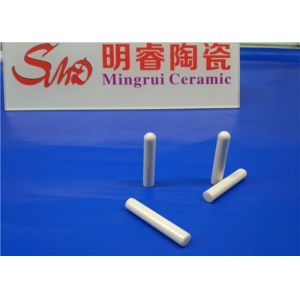

    Round Head Cylinder Alumina Ceramic Rod / Al2o3 Ceramic Parts Fine Polished

    Ask Lasest Price
    Brand Name : OEM
    Model Number : A-005
    Certification : ISO9001:2008
    Price : USD 1-3 /per piece
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 100000000 pieces/per month
    Delivery Time : within 25 days after deposite payment
    • Product Details
    • Company Profile

    Round Head Cylinder Alumina Ceramic Rod / Al2o3 Ceramic Parts Fine Polished


    Round Head Cylinder Al2o3 Ceramic Parts Fine Polished Alumina Ceramic Rod


    Features:

    1. Refractory, anti-resistance temperature, can not more 1800 degree,
    2. Industrial Ceramic, machinery industry
    3. Keep Long Service Life. tolenrance can reach +-0.005
    4. Alumina ceramic
    5. High Corrosion and Wear Resistance.
    6. Good Insulation Performance .
    7. OEM or ODM all can accept
    8. High Purity Zirconia and Alumina Ceramic Material.can option


    Produce and machining

    We can produce different sizes and shapes of the rod for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on

    1. Can Be Custom By Drawing Or The Parameter

    2.Can Be Offer a Samples Within 1--10 Qty

    3. The Shipping Time Of The Samples Within 2days

    4. Quick Delivery Via Fedex,Dhl,Ups,Tnt Etc.
    For more informations (the price,payment etc), Please contact us or email: admin@cerampart.com


    95%,99%,99.7% Al2O3 Material Parameters:

    ItemTest ConditionUnit Symbol95%Alumina ceramics99%Alumina ceramics99.7%Alumina ceramics
    The main chemical ingredientAl2O3Al2O3Al2O3
    Bulk Densityg/cm33.63.893.96
    Maximum Use Temperature1450°C1600°C1650°C
    Water absorption%000
    ROHS Hardness≥85≥89≥89
    Flexural strength20° CMPa (psi x 103)358 (52)550550
    Compressive Strength20° CMPa (psi x 103)2068 (300)2600(377)2600(377)
    Fracture ToughnessK(I c)Mpa m1/24-55.66

    Coefficient of

    thermal expansion

    25-1000° C1X 10-6/°C7.67.98.2

    Coefficient of

    thermal conductivity

    20° CW/m °K1630.030.4
    Thermal Shock ResistanceTc°C250200200
    Dielectricity constant1MHz.25°C99.79.7
    Dielectric strengthac-kV/mm (ac V/mil)8.3 (210)8.7 (220)8.7 (220)
    Volume Resistivity100°Cohm-cm> 1013> 1014> 1014


    Dimension and tolerance:
    ·Diameter as small as 0.2mm, depends on length
    ·Length as long as 550mm, as short as 0.5mm
    ·Diameter tolerance we could make as fine as 0.001mm
    The length and special sizes can be customized, As per 100% drawing
