Good Polished Zirocnia Ceramic Rod / Small Ceramic pin / Ceramic
Roller Pin
| NUT SIZE | A | B | C | D | E | F | R1 | R2 |
| M6 | 4 | 16 | 7 | 12 | 5 | 7 | 2.5 | 1.5 |
| M6 | 4 | 16 | 7 | 12 | 5 | 8.8 | 2.5 | 1.5 |
| M8 | 7 | 15 | 7 | 16 | 6.6 | 11 | 3.3 | MIN |
| M10 | 5 | 16 | 7 | 16 | 8.4 | 11 | 2 | 1.5 |
| M10 | 5 | 16 | 7 | 16 | 8.4 | 14.35 | 2 | 1.5 |
| M10 | 7 | 14.4 | 7 | 16 | 8.5 | 12.1 | 2 | 1.5 |
| 7月16日 | 10 | 16 | 9 | 18 | 9.5 | 13 | 2 | 1.5 |
| M12 | 10 | 18 | 9 | 18 | 10.5 | 13 | 2 | 1.5 |
| M12 | 10 | 18 | 9 | 18 | 10.5 | 14 | 2 | 1.5 |

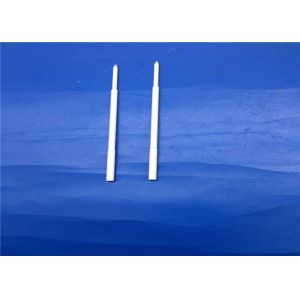

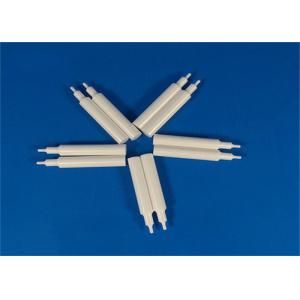

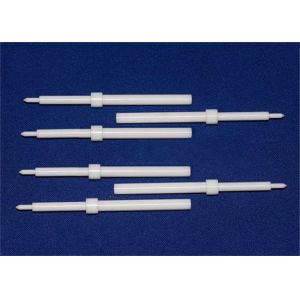

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
Product Description
Advantages:
It features high hardness and wear resistance, low erosion levels,
high temp. resistance, corrosion resistance, and bioinertness.
Additionally, it can be highly polished, making it useful for a
wide range of applications.
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |
Detailed Images
Related Products
Packaging and Shipping
Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag
individually, then separated by a foam, finally into outer carton,
or OEM packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea
transportation.
Company information
Who Are We?
Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic
parts.
What Do We Do?
We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve,
bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments,
clocks and electronic products, mills, energy and power, machine
and metals, autocar and military, spaceflight and some other
high-end fields.
Our products with some certificates, such as , CE, TUV, etc..
Factory Show
Production Process Show
One-stop production, from the raw material to final product.
