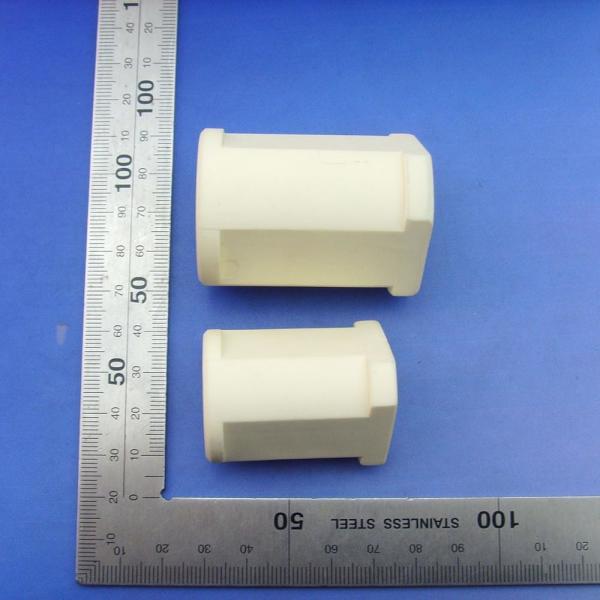

Ceramic Bushing Insulators Excellent electrical insulation High
compressive strength alumina bushing
ceramic bushing and ceramic piston components are engineered for
high durability and reliability. Our complete manufacturing process
control, from forming to finishing, allows us to maintain the
highest standards for your custom components.
Advantages of Ceramic Bushing
High hardness
Wear & abrasion resistant
High compressive strength
High mechanical Strength
Resists strong acid and alkali attack at high temperatures
Ceramic Bushing Insulators and Ceramic Piston offer good resistance
to strong acids and alkalis at elevated temperatures and are ideal
for applications where resistance to corrosive substances is
required.
Excellent electrical insulation properties
Ceramic Bushing and Ceramic Piston are commonly used as a
high-temperature electrical insulator. particularly Ceramic Bushing
and Ceramic Piston which have higher purity grades have better
resistivity.
High-temperature resistance
Ceramic Bushing and Ceramic Piston Insulators can be used in both
oxidizing and reducing atmospheres up to 1650°C (2900°F) and in
vacuum environments up to 2000°C (3600°F).
Application of Ceramic Bushing
Wire and thread guides
Machine components
High-temperature electrical insulators
High voltage insulators
Electronic components & substrates
Wear-resistant linings
Semiconductor parts
Precision pump in high wear environments
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |

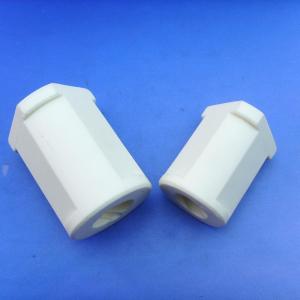

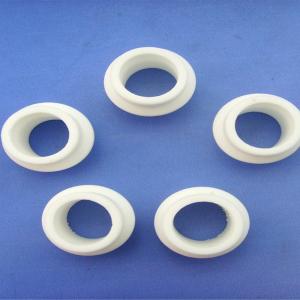

Detailed Images
Company Introduction:
We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a
professional manufacturer specialized
in R&D, manufacturing and selling customized all kinds of high
precision zirconia and alumina ceramic parts, ceramic thread tube . Our main products include ceramic rod , ceramic tube, ceramic
plunger, ceramic valve, ceramic plate, ceramic shaft and bearing ,
ceramic nozzle etc , which are mainly used in industrial fields of
Machinery, Petrochemical oil and gas, Valves, Automotive, Food
Processing, Fluid Handling, Process Control, Thermal Processing,
Aerospace, Defense, Eletronic and Electrical, Textile, Mechanical,
Engineering, Mineral Processing, etc.
We have a full service include mold design and development ,
ceramic forming , precision machining
and precision detection technology. We have achieved great
successes in particular requirements
which is based on cooperating with Tsinghua University and getting
rich experience by our professional technical engineer teams . Our
factory have an unique technical called mirror polishing which
improve
our products more smooth , bright than other competitors.
Delivery:
Custom OEM will be shipped within 15 days after determining the
parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the
ceramic plates, please contact us or email:admin@cerampart.com
CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
