Advanced Industrial Ceramics Small Zirconia Ceramic Filtering
Crucible Mini Size Alumna Refractory Crucibles
Product Description
Advantages of white color Zirconia ceramic crucible:
1. Refractory.
2. Self Lubricating.
3. Long Service Life.
4. Good Polished Surface.
5. Environmental and Healthy.
6. Superior Mechanical Strength.
7. High Corrosion and Wear Resistance.
8. Good Insulation Performance Precision.
9. High Temperature and Pressure Resistance.
10. High Purity Zirconia and Alumina Ceramic Material.
- High hardness, long service life, not easy to break and wear
resistance.
- Non-conductive, anti-static, ceramic material itself with the
insulation of electricity and magnetism properties.
- Corrosion resistance, high temperature resistance, can be applied
to a specific environment, such as acid and alkali resistance.
Properties Crucibles Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |

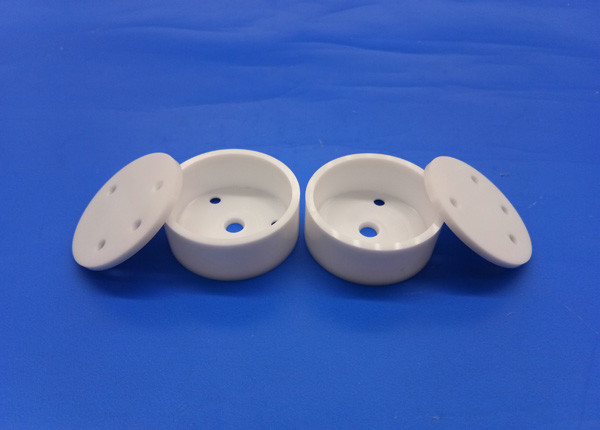

Detailed Crucibles Images
Related Products
High Purity Zirconia Ceramic Tube 99% Al2o3 Heat Insulating Parts
With High Polished Surface
99% Alumina Ceramic Insulating Tube Empire Tubes Insulation Pipe
Bushing Insulator
View More Products
Packaging and Shipping
Maximum resistance 99% al2o3 tube will be packed in a bubble bag
individually, then separated by a foam, finally put in standard
export carton packing, or OEM packing.
Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.
Company information
Who Are We?
Mingrui has professional OEM experience in manufacturing industrial application ceramic parts for so many years. We can make the products according to your drawings, custom the size,
thickness and other parameters.
.
What Do We Do?
We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate,
sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy &
Power, Food & Medical, Agriculture, Aerospace,
even other High-end fields.
.
Our products with some certificates, such as , CE, TUV, etc..
Factory Show
Production Process Show
One-stop production, from the raw material ( powder ) to final
products, control the quality strickly of every production link.
