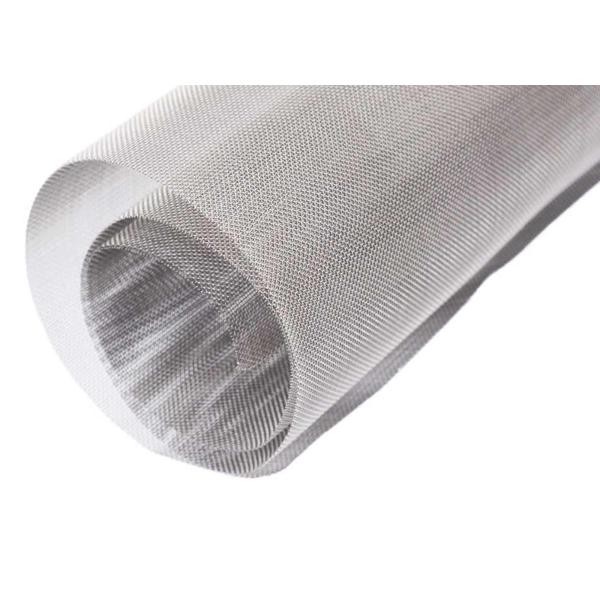

High Tension 100 Mesh 304 Materail With 4 Nickels For Filter Oil
Description of stainless steel wire mesh
Micron stainless steel wire mesh is a surface filter type medium.
It is made by weaving a specific metal wire into a predetermined
pattern to form holes of different shapes and sizes. Plain weave,
twill square, plain Dutch and twill Dutch are common weave
patterns.
The multi-layer micron metal mesh is formed by sintering two or
more layers (2-12 layers) of stainless steel wire mesh, which is
then compressed and sintered together in a vacuum. Its micron grade
ranges from 0.5 microns to 300 microns.
According to the material, stainless steel mesh can be divided
into: SUS302, SUS304, SUS316, SUS304L, SUS316L, SUS310, SUS310s,
SUS430 and other stainless steel grades. 304 and 316 and the most
popular metal materials are used for weaving and processing.
Weaving method: plain weave, twill, Netherlands
Features: Stainless steel mesh screens 304 and 316 have the
characteristics of acid resistance, alkali resistance, heat
resistance and wear resistance.
Uses: Used as a filter cloth screen or processed into a filter disc
for mining, petroleum, chemical, food, pharmaceutical, machinery
manufacturing, etc.
Parameter of stainless steel wire mesh
| Mest count | plain weave can be woven from 1- 400 mesh twill weave can be woven from 2- 635 mesh dutch wevae can be woven up to 500*3500 mesh | | Hole shape | square hole | | Wire diameter | 0.018-2.03mm | | Stock size | 1*30m/roll, 1.22*30m/roll, 1.5*30m/roll or customized. | | Customzied | Other sizes can be customzied as per your requiremnts | | Sample | A4 size sample can be provided. | | Quality Reports | PMI testing video & reports will be provided, to accurance 100%
good quality... |
|
