| Brand Name : | JCYC |
| Model Number : | THP |
| Certification : | CE&ISO |
| Price : | USD negotiate per unit |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 500 pcs per month |
| Delivery Time : | 10 -15 working days |

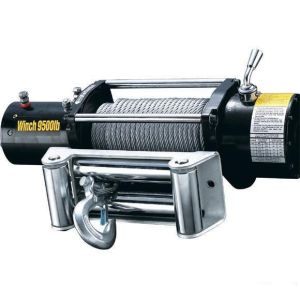

12V/24V Electric Winch of 2000lbs to 20000lbs for Vehicles
| Rated line pull | 4000lbs(1814kgs) single line |
| Motor | Permanent magnet |
| 0.9kw/1.24hp (12V) | |
| Gear ratio | 128.2:1 |
| Wire rope | 1/4"x44.3" (6.4mmx13.5m ) Nylon rope is available |
| Drum size | 13.9"x4.6"x4.92" (353x117x125mm |
| Geartarain | 3-stage planetary |
| Clutch (free spooling) | cam activated |
| Packing size | 41.5x28x18cm 1PCS/CTN |
| Weight | N.W. 13kg, G.W. 14kg |
Line Speed and motor current (first layer)
| Line pull (lbs/kgs) | Line speed (fpm/mpm) DC12V | Motor current (A) DC12V |
| 0/0 | 23.7/6.7 | 26 |
| 500/227 | 23.1/5.95 | 35 |
| 1000/454 | 20.6/5.3 | 70 |
| 1500/680 | 16.7/4.3 | 98 |
| 2000/907 | 13.4/3.45 | 107 |
| 2500/1133 | 10.7/2.75 | 129 |
| 3000/1361 | 8.5/2.2 | 138 |
| 4000/1814 | 6.79/1.75 | 205 |
Line pull and cable capacity
| Layer of cable | Rated line pull per layer (lbs/kg) | Cable capacity per layer (ft/m) |
| 1 | 4000/1814 | 7.9/3.5 |
| 2 | 2817/1278 | 16.7/5.1 |
| 3 | 2573/1167 | 26.2/6.0 |
| 4 | 2363/1072 | 36.7/11.2 |
| 5 | 1975/896 | 44.3/13.5 |
|
