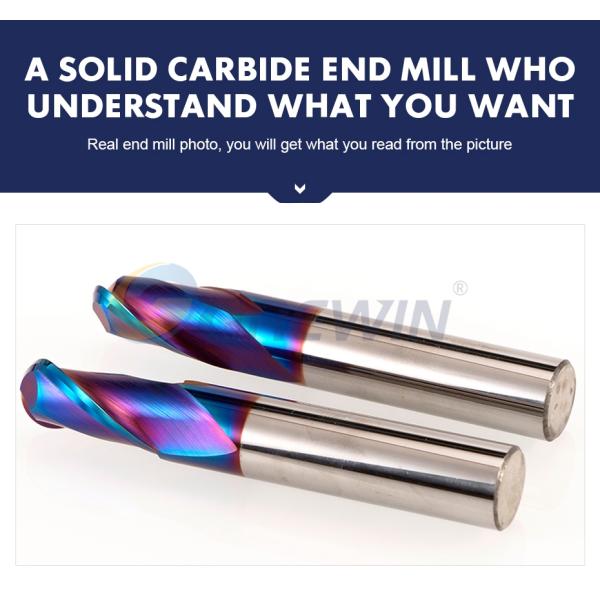

GW HRC65 2F Ball nose end mill with blue naco coated used for SS
GOOD WEAR RESISTANCE, LONG WORKING LIFE, NANO COATING
Made with Anka machine tools and Germany technology,it can perform
finishing and semi-finishing on heat-treated materials below 55
degrees,enhance tool life reduce the number of roundabouts, and
provide machine tool operation.
BIG DIAMETER DESIGN, SHARP CHIP REMOVAL
The unique helix angle is ground by first-class precision machine
tools.The large core diameter design enhances rigidity and shock
resistance The large chip removal space is not easy to accumulate
chips,and is not easy to break. It is sharp and
wear-resistant,cutting smoothly,and improving milling efficiency.
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
WITH PASSIVATION TREATMENT. DURABLE AND ANTI-CORROSION
Imported passivation equipment, finely densified sand,increases the
corrosion resistance and wear resistance of the end mill. Good
grinding makes the cutting edge without chips. It can Extended the
working life.
| Carbide Grade | Technical Details of tungsten carbide rod |
| 10U | Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um |
| 12U | Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um |
| K40 | Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um |
| K44 | Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um |
Our Services
More than 2000 products are available. Assembly line production,
high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount
on shipping cost from our courier companies, such as FedEx, DHL,
TNT, UPS etc.
