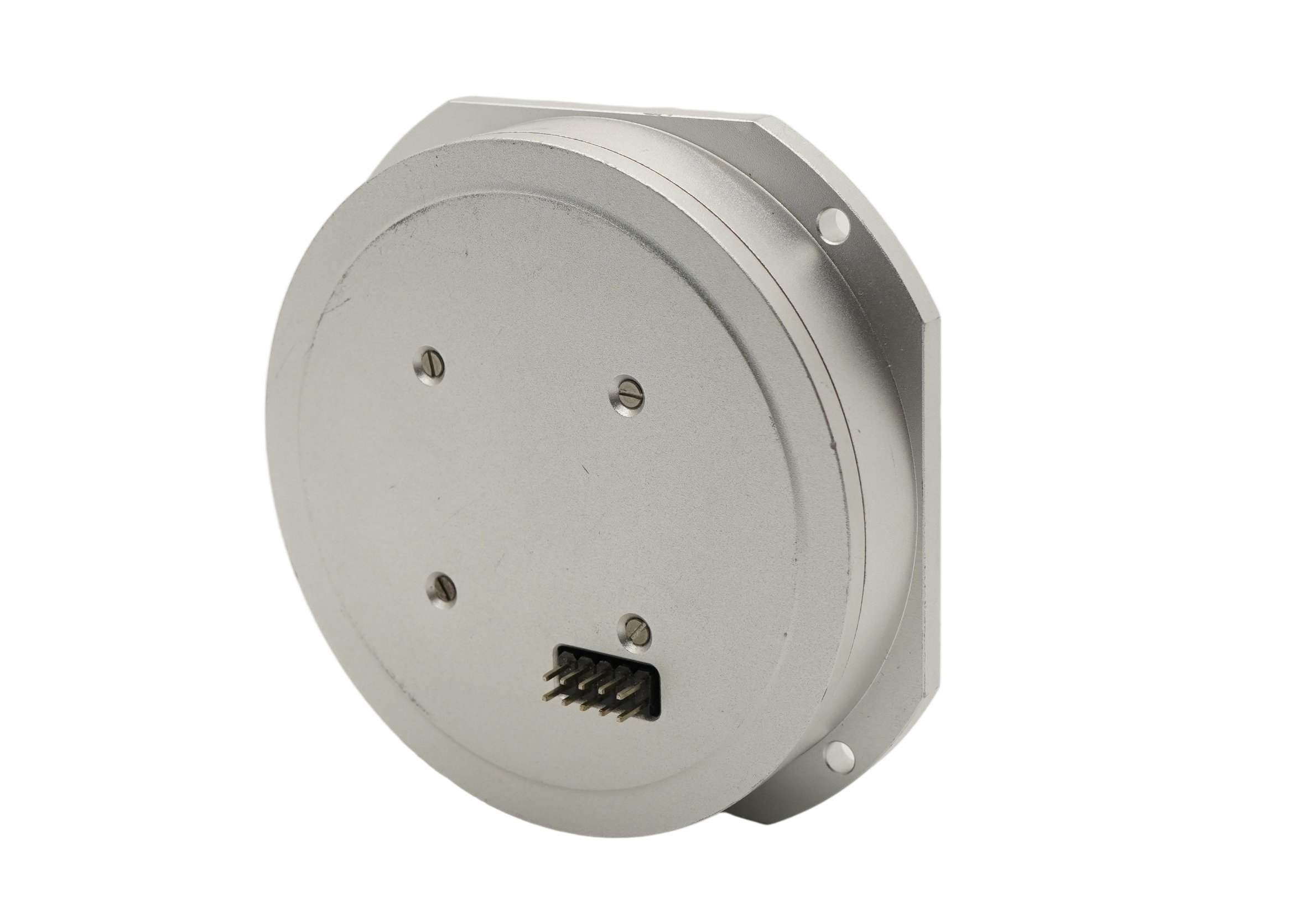

High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability

    Buy cheap High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability from wholesalers

    Buy cheap High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability from wholesalers
    • Buy cheap High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability from wholesalers
    • Buy cheap High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability from wholesalers
    • Buy cheap High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability from wholesalers
    • Buy cheap High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability from wholesalers
    • Buy cheap High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability from wholesalers

    High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability

    Ask Lasest Price
    Brand Name : Firepower
    Model Number : MFOG-910
    Certification : CE
    Price : 800USD
    Delivery Time : 1 weeks for sample
    Payment Terms : 100% in advance
    Supply Ability : 100 pcs/month
    • Product Details
    • Company Profile

    High Precision Single Axis Gyro 1000ppm Scale Factor Repeatability

    The MFOG-910 micro-nano fiber optic gyroscope is a high-precision angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes advanced micro-nano fiber components to detect, process, and feedback the phase difference between counter-propagating light beams.
    With a compact structure (82 × 82 × 19.5 mm) and lightweight design (≤150 g), it features high stability, no moving parts, fast startup, and wide temperature adaptability (-40°C to +70°C).
    Applications: Suitable for UAV attitude control, vehicle navigation, ship stabilization, and aerospace orientation measurement.


    The product is mainly composed of the following components:

    A) an optical path assembly,

    B) Detection and control signal circuit board,

    C) Optical fiber coil skeleton, shell and other structural parts,

    4.3 Appearance and dimension

    The overall dimension of the product is 82mm × 82mm × 19.5mm (without plug).

    Weight

    ≤150g.

    4.5 Operating temperature

    -40℃~+70℃.

    4.6 Storage temperature

    -55℃~+85℃.

    4.7 Random vibration

    Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

    Main Performance Parameters

    Serial number

    Project

    Performance indicators

    1

    Range (°/s)

    ±240

    2

    Scale factor (mV/ o /s)

    47±5

    3

    Scale factor nonlinearity (ppm)

    ≤1000

    4

    Zero-bias stability (10s, 1σ, o /H)

    ≤0.8

    5

    Zero-bias repeatability (1σ, o /H)

    ≤0.8

    6

    3dB Bandwidth (Hz)

    ≥1000

    7

    Random walk ( o /√ H)

    ≤0.02

    8

    Power supply (V)

    5+0.25

    +12

    9

    Power Consumption (W)

    ≤1.5

    10

    Impact (g)

    ≥1500

    11

    Acceleration (g)

    ≥70

    12

    Life (years) (calculated assessment)

    ≥15

    13

    MTBF (Calculated Assessment)

    ≥100000
