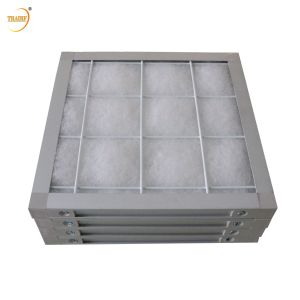

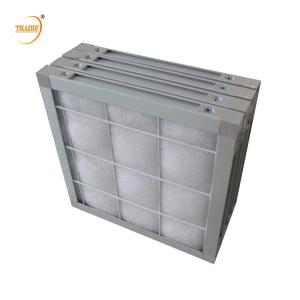

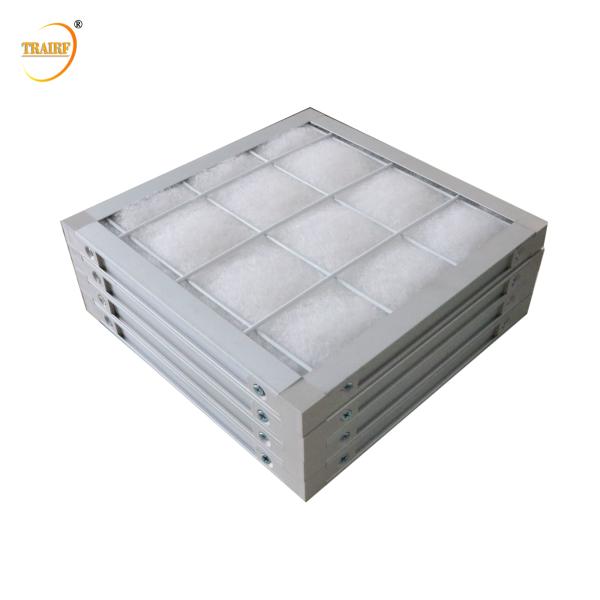

Wholesale Price G4 Coarse Filter Washable Air Filter Pre Filter
Wholesale air filter pre filter ( G4 pre filter coarse filter) is a
kind of washable air filter air purifier for primary air
filtration, which is made of high quality polyester synthetic fiber
or filter cotton. It has the advantage of the large dust holding
capacity, the low pressure loss in the initial period and lager air
flow.
SPECIFICATIONS:
Model | Dimension | Rate air
flow | Initial Resistance | Efficiency |
(W*H*D)MM | (m³/h) | (pa) | (Class) |
TR-CX-P1 | 295*295*10/20 | 800 | 25 Pa | G1 G2 G3 G4 |
TR-CX-P2 | 495*495*10/20 | 1300 |
TR-CX-P3 | 495*495*10/20 | 2200 |
TR-CX-P4 | 595*295*10/20 | 1600 |
TR-CX-P5 | 595*495*10/20 | 2700 |
TR-CX-P6 | 595*595*10/20 | 3200 |
* Customizable Size
Material and characteristics
Frame material: aluminum plate frame, galvanized frame
Filter material: synthetic fiber
Net protection material: diamond net
Optional thickness of aluminum profile: 10mm,15mm,17mm, 21mm,46mm
Features:
1. High dust loading capacity
2. Low pressure drop
3. Large air flow
4. Efficiency: G2, G3, G4
5. Low cost
6.Easy installation
7.Long service life
8.Customization is available.
DETAILS:
1. Outer Frame
Strong aluminum alloy frame to protect whole structure.
2. Filter Media
Good quality filters cotton to collect dust effectively.
3. Product Design
Well-organized metal support to prevent filter media falling.
