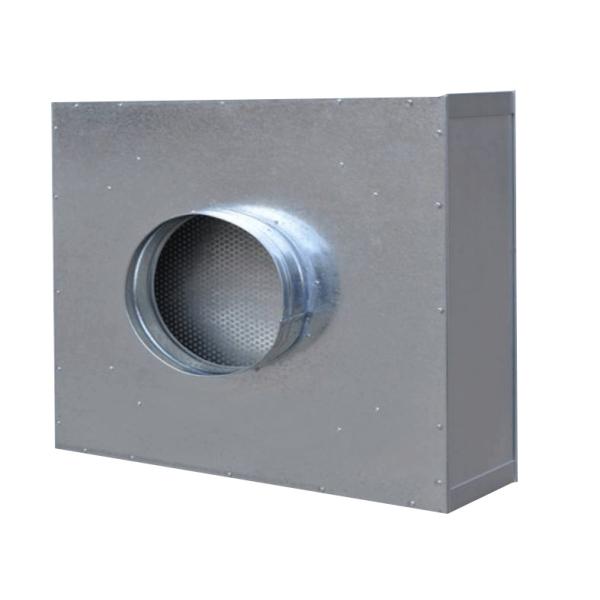

Terminal Air Filter Hepa Filter Box For Clean Room
Feature of Disposable HEPA filter
1) It is designed with insulation cotton or mounting lugs
2) It adopts the unique sealing technology that has good
elasticity, no deformation, no falling off, and won’t air leak
while installing or operating.
3) Light weight, low resistance,and easy to install or make a
replacement.
4) The filter is replaceable without replacing the box, which
reduces the costs and saves resources.
Advantages:
• Efficiencies of 95% up to 99.9995% @ 0.3 microns
• Low initial pressure drop
• Ready to install
• Bottom side is well protected by coated grille
• 100% individually scanned in accordance with EN 1822
• 10” or 12” collar
• A lot of different application
• Disposable, easy to use, low service cost
Parameters & Material:
- Frame: Extruded Anodized Aluminum
- Media: Microfine glass fiber
- Mounting system: Mechanical clamping structures
- Max.Constant Temperature: 80℃ (170℉)
- Recommended Final Resistance: 500Pa ( 2.0” W.G)
- Flammability: UL Classified
- Relative Humidity: 100%
