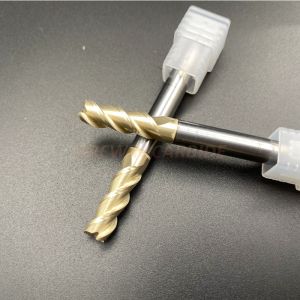

    HRC55 Square Solid Carbide End Mills with Copper Coating

    Ask Lasest Price
    Brand Name : Whitout Brand
    Model Number : As your requirements
    Certification : ISO9001, SGS
    Price : USD 1.04/PCS
    Payment Terms : T/T, PAYPAL, WESTERN UNION
    Supply Ability : 50000pcs/Month
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

    HRC55 Square Solid Carbide End Mills with Copper Coating

    Product Overview

    HRC55 Tungsten Carbide 3Flutes Milling End Mill
    Application:suitable for processing stainless steel, cast iron, copper,carbon steel etc.
    Best material: we use the import material, AF,SANDVIK,KENNA,CB,etc.
    Quality:all our manufactured parts are inspected by advanced zoller mearsurement.
    Facility:we have the world lastest 5-axis tools grinding machines.
    Flexbility:non-standard sizes are accepted.
    FEATURES AT A GLANCE
    3 Flutes Flat End Mill for Aluminium

    HRC choice: HRC38-45, HRC50-55
    Without polishing with polishing
    Materials to be cut: Aluminum
    ​​​
    Code No.
    Diamter
    d
    Cutting length
    l
    Total length
    L
    Shank
    D
    Flutes
    Z
    3GW4-01002050
    1
    3
    50
    4
    2
    3GW4-01504050
    1.5
    4
    50
    4
    2
    3GW4-02050500
    2
    5
    50
    4
    2
    3GW4-02507050
    2.5
    7
    50
    4
    2
    3GW4-03008050
    3
    8
    50
    4
    2
    3GW4-04010050
    4
    10
    50
    4
    2
    3GW4-04015075
    4
    15
    75
    4
    2
    3GW4-04020100
    4
    20
    100
    4
    2
    3GW4-05012050
    5
    13
    50
    6
    2
    3GW4-06015050
    6
    15
    50
    6
    2
    3GW4-06020075
    6
    20
    75
    6
    2
    3GW4-06020100
    6
    30
    100
    6
    2
    3GW4-06020060
    8
    20
    60
    8
    2
    3GW4-08025075
    8
    25
    75
    8
    2
    3GW4-08025100
    8
    35
    100
    8
    2
    3GW4-010025075
    10
    25
    75
    10
    2
    3GW4-010040100
    10
    40
    100
    10
    2
    3GW4-012020075
    12
    30
    75
    12
    2
    3GW4-012040100
    12
    40
    100
    12
    2
    3GW4-014020080
    14
    30
    80
    14
    2
    3GW4-014100100
    14
    40
    100
    14
    2
    3GW4-016040100
    16
    40
    100
    16
    2
    3GW4-018040100
    18
    40
    100
    18
    2
    3GW4-020040100
    20
    40
    100
    20
    2
    3GW4-06040150
    6
    40
    150
    6
    2
    3GW4-08050150
    8
    50
    150
    8
    2
    3GW4-010050150
    10
    50
    150
    10
    2
    3GW4-012050150
    12
    50
    150
    12
    2
    3GW4-014060150
    14
    60
    150
    14
    2
    3GW4-016060150
    16
    60
    150
    16
    2
    3GW4-018060150
    18
    60
    150
    18
    2
    3GW4-020060150
    20
    60
    150
    20

    Product show:

    Standard sizes

    2 flutes Flat End Mill
    HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
    Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
    Materials to be cut: Original steel, cast iron, Aluminum, copper, graphite, plastics,
    Titanium, alloy, harden steel, stainless steel, HSS etc.

    Code No. Diamter
    D    		 Cutting length
    L    		 Total length
    L    		 Shank
    D    		 Flutes
    Z
    2GW1-01002050 1 3 50 4 2
    2GW1-01504050 1.5 4 50 4 2
    2GW1-02050500 2 5 50 4 2
    2GW1-02507050 2.5 7 50 4 2
    2GW1-03008050 3 8 50 4 2
    2GW1-04010050 4 10 50 4 2
    2GW1-04015075 4 15 75 4 2
    2GW1-04020100 4 20 100 4 2
    2GW1-05012050 5 13 50 6 2
    2GW1-06015050 6 15 50 6 2
    2GW1-06020075 6 20 75 6 2
    2GW1-06020100 6 30 100 6 2
    2GW1-06020060 8 20 60 8 2
    2GW1-08025075 8 25 75 8 2
    2GW1-08025100 8 35 100 8 2
    2GW1-010025075 10 25 75 10 2
    2GW1-010040100 10 40 100 10 2
    2GW1-012020075 12 30 75 12 2
    2GW1-012040100 12 40 100 12 2
    2GW1-014020080 14 30 80 14 2
    2GW1-014100100 14 40 100 14 2
    2GW1-016040100 16 40 100 16 2
    2GW1-018040100 18 40 100 18 2
    2GW1-020040100 20 40 100 20 2
    2GW1-06040150 6 40 150 6 2
    2GW1-08050150 8 50 150 8 2
    2GW1-010050150 10 50 150 10 2
    2GW1-012050150 12 50 150 12 2
    2GW1-014060150 14 60 150 14 2
    2GW1-016060150 16 60 150 16 2
    2GW1-018060150 18 60 150 18 2
    2GW1-020060150 20 60 150 20 2


    3 flutes Flat End Mill

    HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
    Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
    Materials to be cut: Original steel, cast iron, Aluminum, copper, graphite, plastics,
    Titanium, alloy, harden steel, stainless steel, HSS etc.

    Code No. Diamter
    D    		 Cutting length
    L    		 Total length
    L    		 Shank
    D    		 Flutes
    Z
    3GW1-01003050 1 3 50 4 3
    3GW1-01504050 1.5 4 50 4 3
    3GW1-02050500 2 5 50 4 3
    3GW1-02507050 2.5 7 50 4 3
    3GW1-03008050 3 8 50 4 3
    3GW1-04010050 4 10 50 4 3
    3GW1-04015075 4 15 75 4 3
    3GW1-04020100 4 20 100 4 3
    3GW1-05013050 5 13 50 6 3
    3GW1-06015050 6 15 50 6 3
    3GW1-06020075 6 20 75 6 3
    3GW1-06030100 6 30 100 6 3
    3GW1-06020060 8 20 60 8 3
    3GW1-08025075 8 25 75 8 3
    3GW1-08035100 8 35 100 8 3
    3GW1-010025075 10 25 75 10 3
    3GW1-010040100 10 40 100 10 3
    3GW1-012030075 12 30 75 12 3
    3GW1-012040100 12 40 100 12 3
    3GW1-014030080 14 30 80 14 3
    3GW1-014100100 14 40 100 14 3
    3GW1-016040100 16 40 100 16 3
    3GW1-018040100 18 40 100 18 3
    3GW1-020040100 20 40 100 20 3
    3GW1-06040150 6 40 150 6 3
    3GW1-08050150 8 50 150 8 3
    3GW1-010050150 10 50 150 10 3
    3GW1-012050150 12 50 150 12 3
    3GW1-014060150 14 60 150 14 3
    3GW1-016060150 16 60 150 16 3
    3GW1-018060150 18 60 150 18 3
    3GW1-020060150 20 60 150 20 3


    4 flutes Flat End Mill
    HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
    Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
    Materials to be cut: Original steel, cast iron, Aluminum, copper, graphite, plastics,
    Titanium, alloy, harden steel, stainless steel, HSS etc.
    Code No. Diamter
    D    		 Cutting length
    L    		 Total length
    L    		 Shank
    D    		 Flutes
    Z
    4GW1-01003050 1 3 50 4 4
    4GW1-01504050 1.5 4 50 4 4
    4GW1-02050500 2 5 50 4 4
    4GW1-02507050 2.5 7 50 4 4
    4GW1-03008050 3 8 50 4 4
    4GW1-04010050 4 10 50 4 4
    4GW1-04015075 4 15 75 4 4
    4GW1-04020100 4 20 100 4 4
    4GW1-05013050 5 13 50 6 4
    4GW1-06015050 6 15 50 6 4
    4GW1-06020075 6 20 75 6 4
    4GW1-06030100 6 30 100 6 4
    4GW1-06020060 8 20 60 8 4
    4GW1-08025075 8 25 75 8 4
    4GW1-08035100 8 35 100 8 4
    4GW1-010025075 10 25 75 10 4
    4GW1-010040100 10 40 100 10 4
    4GW1-012030075 12 30 75 12 4
    4GW1-012040100 12 40 100 12 4
    4GW1-014030080 14 30 80 14 4
    4GW1-014100100 14 40 100 14 4
    4GW1-016040100 16 40 100 16 4
    4GW1-018040100 18 40 100 18 4
    4GW1-020040100 20 40 100 20 4
    4GW1-06040150 6 40 150 6 4
    4GW1-08050150 8 50 150 8 4
    4GW1-010050150 10 50 150 10 4
    4GW1-012050150 12 50 150 12 4
    4GW1-014060150 14 60 150 14 4
    4GW1-016060150 16 60 150 16 4
    4GW1-018060150 18 60 150 18 4
    4GW1-020060150 20 60 150 20 4


    Packing

    Brand Laser printed on cutter shank, 1 pcs in a plastic tube, 10 pcs a group


    Delivery time

    Keep stock for regular types
    Samples: 3 - 5 days
    Regular orders: 7 - 10 days

    Our Services
    More than 2000 products are available. Assembly line production, high standard and strict requirements.
    OEM Services Offered
    Customized Tools Offered
    Free laser marking on tools and boxes Offered
    Fast delivery time and Convenient Transportations.We have discount on shipping cost from our courier companies, such as FEDEX,DHL,TNT, UPS etc.

    Grewin carbide waiting for your kindly inquiry.
