| Model | CGFB24-24-24-8 |
| Number of Sterilizing Head | 24 |
| Number of Rinsing Head | 24 |
| Number of Filling Head | 24 |
| Number of Capping Head | 8 |
| Rated Production Capacity | 24000BPH |
| Installed Capacity:(kw) | 6.5 |
| Overall Size L*W*H(mm) | 4070*2350*2400 |
Main performance:
1) Bottle is entered by air conveyor, the speed of bottle entering
is fast and bottle shape isn’t changed because of adopting hanging
clamping bottleneck way
2) Adopting clamping bottleneck fashion to wash bottle mouth and
avoid touching screw mouth, when bottle type changes, you need to
change the board related with bottle diameter

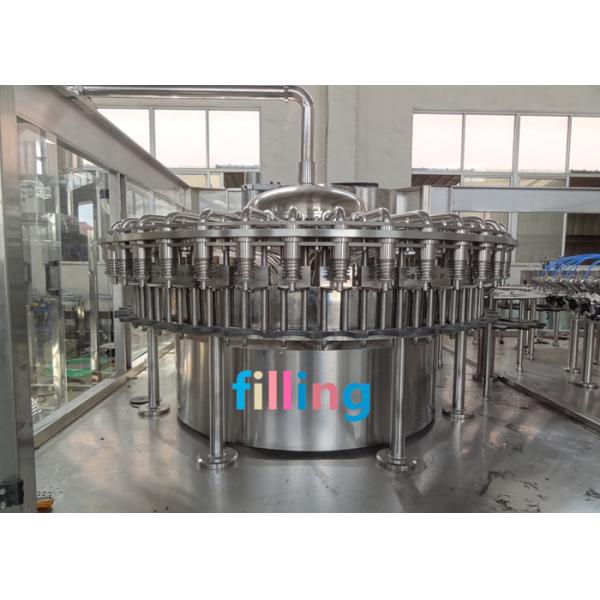

3) Filling adopts cylinder feeding structure, filling valve adopts
high filling speed and mass flow rate valve which control liquids
level accurately and without loss.
4) Screw capper adopts French advanced technologies which can screw
cap promptly when clamping bottle.
5) The PLC and transducer are chosen from international famous
brand, such as OMRON, MITSUBISHI and so on
Features:
1. Compact structured, good-looking, easy to operate and highly
automated.
2. Air conveyor is directly linked with feed-in starwheels,making
it easier to change bottles.
3. Bottles are transferred in the manner of hanging neck. Bottles
can be changed through some replacement, which instead of adjusting
the height of machine.
4. Rinsing-clamp which special design is strong and endurable, no
contact with bottle-mouth, to prevent pollution.
5. Highly effective spraying nozzles equipped on the rinsing-clamp
can rinse every side of inner bottle and save water.
6. Accessories which contact with material are all made of
stainless steel, no dead angles and easy to clean up.
7. Bottling volume can be controlled by membrane adjusting valves
to ensure accurate filling.
8. Valve on-off system is driven by hydraulic cylinder, which
starts on bottle signals.
9. High-speed and highly accurate bottling valves ensure no loss of
liquid at high speed.
10. Equipped with CIP clean-in-place return pipeline.
11. Bottom splint which fixed in the feed-out starwheel goes down
in the manner of screw. Bottles can be changed without
adjustment of height of conveyor chain.
12. Capping heads are magnetic constant-torque equipped to ensure
capping quality with no damage.
13. Highly effective cap sorting and feed in system is protective
for feed in and cap absence.
