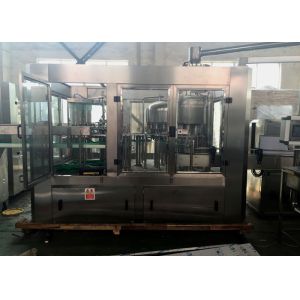

CE Electric Automatic Water Bottle Filling Machine with 2000 -
30000b/h Capacity
Specifications
CE Electric Automatic Water Bottle Filling Machine with 2000 -
30000b/h Capacity
1.Manufacturer
2.CE,ISO,SGS
3.water filling plant
CE Electric Automatic Water Bottle Filling Machine with 2000 -
30000b/h Capacity
1.Capacity:2000-30000b/h
2.Bottle size:200ml-2L
3.Component contact with liquid adopt SUS304(or change to 316
according to your request )
4.Delivery detail: 30days
COMPLETE WATER FILLING PRODUCTION LINE INCLUDES:
- Water treatment
- Air conveyor
- Washing-filling-capping 3-in-1 monoblock
- Light checker
- Cap loader
- Conveyor
- Air dryer
- Labeling machine
- Ink jet printer
- Shrink packing machine
Washing part of water filling plant
a) Rotary pan is made of stainless steel 304(or change to 316
according to your request).
b) The rubber clamp splice sizes the mouth of bottles, which is
fixedness and reliable.
Filling part of water filling plant
a) Rotary pan is made of stainless steel 304 (or change to 316
according to your request )
b) The way of filling is gravitation filling.
c) The filling valve is adopted best stainless steel 304 (or change
to 316 according to your request )
d) The structure of filling valve is reasonable, the amount is
correct
e) When filling the bottle, the bottle is move but the valve is
stationary. The splint of bottle-neck seizes mouth of bottles. The
elevator device with the action of gear realize the up and down of
bottle
Capping part of water filling plant
Capping machine is one of the highest precision machines, which
greatly affects the reliability of device and the defective rate of
product. The characteristic is as follows:
a) The dropping cap guide track fixes the device which can protect
the cap from turning over and also set the device which can take
out the inverse cap, equip a photo electricity switch which can
stop the machine when lacking the cap and also avoid the situation
that there is bottle without cap.
b) The bottle inlet switch which is set in the capping machine,
with the locking cap which is the connection of the dripping cap
guide track and dialing cap pan controls the discharging of cap,
making sure that stop conveyor cap when there is no bottles ,avoid
the waste of cap.
Main technical parameters:
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 |
Production Capacity (500mm)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000 | 16000-18000 |
| Filling Precision | ≤±5mm(Liquid Level) |
| Polyester Bottle Standard(mm) | Bottle DiameterΦ40-Φ80,Height:130-280 | Bottle DiameterΦ50-Φ100,Height:150-320 |
| Suitable Cap Shape | Plastic Screw Cap |
| Water Pressure of Washing Bottle(Mpa) | 0.18 |
| Water Consumption for Water Bottle(kg/h) | 800 | 1600 | 2500 | 3500 | 1000 |
| Spraying Position | 5 | 5 | 6 | 12 | 5 |
| Dripping Bottle Position | 3 | 3 | 3.5 | 7 | 8 |
| Gas Source Pressure(Mpa) | Normal Pressure |
| Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 |
| Total Power(kw) | 4.23 | 5.03 | 6.57 | 8.63 | 9.63 |
| Total Weight | 2000 | 3500 | 5500 | 6000 | 8000 |
| Dimension(L*W*H)(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2250 | 3500*2200*2250 |
Our certificate
Company Information
Jiayuan company was established in 1997, and for years we have been
focusing on the improvement in machinery theory and performance in
the food machinery industry. We have such as CE,ISO etc
certification.
We are a company integrating scientific research, production and
service, and have the best manufacturing facilities and production
process, professional staffs, imported facilities of concentration
distill series, automatic CIP series, PLC control etc. Now we have
been a market leader in the Chinese food machinery industry. The
company keeps in mind the tenet of "serving users" and focus on
research and development of new technologies. It has comprehensive
development capacity and sound quality assurance system, and has
made R&D achievement and obtained invention patents. Our
machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major
engineering projects include complete dairy products production
line, beverage production line, biochemical engineering production
line.
