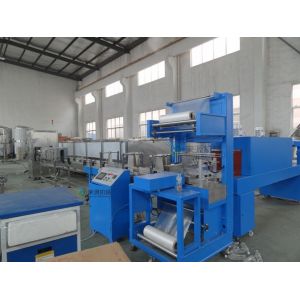

15000BPH Glass Bottle Shrink Packing Machine , Bottled Water Plants
Quick Detail:
1. Product: Glass bottle shrink packing plant
2. Model:WD-150A
3. Main Material: SS304
4. Production capacity: 15000bph(500ml)
5. Usage: Packing machine
6. Warranty: 1year free
Glass bottle shrink packing plant
Description:
Applicable Bottle Types:
This automatic shrink labeling machine n be used for various kind
of bottle types, for example : round bottle, square bottle,flat
bottle, curved bottle and cup-shaped, etc.
Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor,
servodriver, frequency converter and sducer,besides, it adopts the
positioning module to ensure casting label precise, rapid and
stable.
Facility character
Glass bottle shrink packing plant
1) Technical parameter
Facility typeWD-150A type
Facility external sizeL5050×W3300×H2100mm
wrap page max sizeL600×W400×H350mm
Shrinkage film size PE PVC POF
Shrinkage thermo thickness0.03-0.15mm
Thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.
Max output per minute8-12bag
Facility power18Kw
Actual power15Kw/hr
Pressure requirement380/220V
Facility weight1.2T
Fan machine1.1Kw 2set 380V, 65W 4set 380V
2) Technical condition and requirement:
1package type
(1)350/500/550/600ML big bag4×6, 4×5; small bag3×4, 3×5 four type
of package.
(2)1L1.5L2L2.5L big bag3×3, 3×4; small bag2×2, 2×3 four type of
package
2Regarding can, we suggest adopt to package with tray, pack
steadily.
3package speed815bagmin
4meet with pre-treatment filling speed of filling machine.
(1) 350/500/550/600ML big bag4×6,4×5,(1200015000bhrsmall
bag3×5,3×4,(800010000bhr.
(2)1L1.5L2L big bag3×4, 3×3(50006000b small bag2×3, 2×230004000bhr.
5package materialPE thermo shrinkage film width200600mm,
thickness0.080.12mm
External Dimenssion | L5050*W3300*H2200 |
The overall size of packaging machinery | Main Machine | L1180*W1080*H2370 |
thermo-wind Stove | L3890*W1050*H2040 |
Cabinet | L1250*W780*H1100 |
Total Weight | 1.2t |
The dimension of hot thermo-wind stove | L3700*W920*H1800 |
Max.Packing Size | L600*W400*H350 |
Packing Speed | 8-15 Packet |
The speed of Conveyor | 920Adjustable 200 |
Working Power | 380V 20KW |
Working Pressure | 0.6-0.8Mpa |
Total Power | 20kw |
|
|
Competitive Advantage:
Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.
1. The company around 110 KM away from Shanghai, has convenient
traffic.
2. The company was established in 1999, has rich experience.
3. We are an CE&SGS certified company.
4. We can produce kind of filling&packing machine, such as
- Bottled water production line
- Carbonated soft drinks production line
- Hot-fill juice and tea production line
- 5 Gallon bottled water production line
- Water treatment machine and packing machine
5. Jiayuan machinery co.,ltd can provide turn-key services for
customers, from plant layout, equipment manufacturing, production
line setup and operators training.
